Search found 2441 matches

by kbushnz
Sun Nov 04, 2018 8:21 am
Forum: Drivetrain / Suspension
Topic: 70series prado auto
Replies: 6
Views: 107

Re: 70series prado auto

Ok some numbers for you. Ignore the fact I have grabbed an image of a manual 80 series trans... It just shows a good overview of where I measured from... The distance between the two mating faces of the transfercase drive shaft flanges is the 400mm dimention... The 545 measurement is from the joint ...
by kbushnz
Sun Nov 04, 2018 7:49 am
Forum: Drivetrain / Suspension
Topic: 70series prado auto
Replies: 6
Views: 107

Re: 70series prado auto

yes from my observations the 1UZ auto has a longer output shaft so will need either swapping or cutting down to accept the adaptor / extention housing from a factory auto / split transfercase.
Phil Clarke at Force 4 runs the 1UZ in his Prado.... he would have some good insights for you.
by kbushnz
Sun Nov 04, 2018 7:15 am
Forum: Drivetrain / Suspension
Topic: 70series prado auto
Replies: 6
Views: 107

Re: 70series prado auto

I have a KZJ78 running a PTO winch with the auto A343F. I can get you some measurements later today.... All the spilt transfercases are then same...Dimension wise, Some early 70's have a different ratio for low compared to the Square Prados. Just remember you cant put a split transfercase on the sur...
by kbushnz
Sun Nov 04, 2018 7:13 am
Forum: Projects / Mod's
Topic: Rear mount radiator
Replies: 7
Views: 214

Re: Rear mount radiator

yeah the factory engine driven fan and radiator was excellent... so its all going back in.
I should be going to manukau... for a looksie...
Wont be competing winch truck still in bits..
by kbushnz
Sat Nov 03, 2018 7:47 am
Forum: Projects / Mod's
Topic: Rear mount radiator
Replies: 7
Views: 214

Re: Rear mount radiator

Well I have had a long hard think.... And for what I want to use this truck for the rear rad is not going to do it for me,. Spent the whole day with cardboard ducts and put on 100 ks of motor way running...Tweaking, moving etc etc With the area I have to work with its not ideal. Now if the truck was...
by kbushnz
Wed Oct 31, 2018 6:29 am
Forum: Projects / Mod's
Topic: Rear mount radiator
Replies: 7
Views: 214

Re: Rear mount radiator

Cheers Guys I have had a play with a run to work and back, turned the fans on the whole time.. Engine temp settled down and the rad outlet dropped to a steady 60 ish... And if i stop in traffic it will plummet to 30..... The rad is more than capable of cooling her down its all about airflow now lol....
by kbushnz
Mon Oct 29, 2018 9:41 am
Forum: Projects / Mod's
Topic: Rear mount radiator
Replies: 7
Views: 214

Rear mount radiator

After some info / advice.. (thinking out loud) Setup a rear mount rad for my Prado bum chop. Running a large Nissan GU Radiator and Au falcon fans. Getting an issue with airflow... Fans kick in and out all the time and basically control the temps in the engine hahah Poor thermostat must be pretty mu...
by kbushnz
Sun Oct 14, 2018 11:51 am
Forum: Toyota
Topic: Fixing 80series winch stall issue
Replies: 7
Views: 253

Re: Fixing 80series winch stall issue

Nice work, have you tested the new brake yet?
I take it you checked the wiring and the solenoid to confirm its not a power supply issue to the motor causing it to stall?

But love the Kiwi ingenuity !

Calvin
by kbushnz
Thu Sep 13, 2018 3:20 pm
Forum: Nissan
Topic: head lights
Replies: 4
Views: 254

Re: head lights

I have Led lights on the Prado.... Passed cert and WOF. You cant fit the LED bulb replacement lamps into a normal H4 glass.. But there is nothing stopping you replacing the whole assy for sealed LED units as long as they are DOT approved and have an symmetrical beam pattern or a beam pattern the sam...
by kbushnz
Sat Aug 11, 2018 6:56 pm
Forum: Tool Shed
Topic: pto driven hydraulic winch
Replies: 10
Views: 441

Re: pto driven hydraulic winch

Talk to Phil Clarke at Force 4 in auckland. He runs a hydraulic winch from an auto landcruiser.
by kbushnz
Mon Aug 06, 2018 12:55 pm
Forum: 4WD Parts
Topic: Cromoly tube
Replies: 4
Views: 341

Re: Cromoly tube

What part of the country are you at?
by kbushnz
Sun Jul 15, 2018 4:23 pm
Forum: Toyota
Topic: 1KZ torque Lock up Wiring.
Replies: 6
Views: 265

Re: 1KZ torque Lock up Wiring.

The fault you describe could be the ECU starting to play up. As the capacitors leak and cause all sorts of issues as they age. Either the Auto starts to play up or engine...Or both. There are only a few triggers that turn off the Torque Lock... Brakes applied, Temp too cold (sensor could be playing ...
by kbushnz
Sun Jul 15, 2018 10:43 am
Forum: Toyota
Topic: 1KZ torque Lock up Wiring.
Replies: 6
Views: 265

Re: 1KZ torque Lock up Wiring.

Cool then the above pinout is the same (for the trans) for the KZJ78 as thats what I used....
by kbushnz
Sun Jul 15, 2018 9:40 am
Forum: Toyota
Topic: 1KZ torque Lock up Wiring.
Replies: 6
Views: 265

Re: 1KZ torque Lock up Wiring.

What vehicle? I have some pin outs for various ecu's....

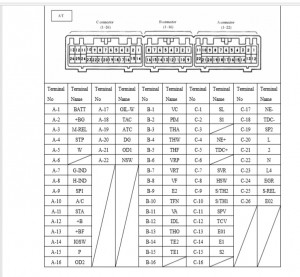

You are looking for SL, here is the ECU pin out for the surf.
by kbushnz
Tue Jul 10, 2018 4:43 pm
Forum: 4WD's Forsale / Wanted
Topic: Anyone have any Experience with the GMC / Chevy Tahoe
Replies: 5
Views: 382

Re: Anyone have any Experience with the GMC / Chevy Tahoe

These are the basic wheel base info for the Nissan Saf's Dimensions Wheelbase SWB: 2,400 mm (94.5 in) LWB: 2,970 mm (116.9 in) Length SWB: 4,285 mm (168.7 in) LWB: 4,845 mm (190.7 in) Width SWB: 1,930 mm (76.0 in) LWB: 1,930 mm (76.0 in) Height SWB: 1,810 mm (71.3 in) LWB: 1,815 mm (71.5 in) And her...
by kbushnz
Tue Jul 10, 2018 3:58 pm
Forum: Diesel Engines and Modifications
Topic: 2lt tacho pulse
Replies: 5
Views: 606

Re: 2lt tacho pulse

Its been discontinued. https://www.jaycar.co.nz/speedo-corrector-mkii-kit/p/KC5435 The replacement kit may not work. As the previous kit could be adjusted to different input signals and then pass them thru as new signals. Best fix is to get a tacho from a 2LT and swap them over in your instrument cl...
by kbushnz
Fri Feb 16, 2018 4:08 pm
Forum: Toyota
Topic: Auto trans oil temp
Replies: 6
Views: 306

Re: Auto trans oil temp

The trans temp warning light comes on around 120 C. Typical normal running temp is about 55 to 60C but this varies depending on load etc etc. The biggest heat generator is the torque converter... So if you dont have the converter locked and its doing its slipping thing it will generate a heap of hea...
by kbushnz
Sat Feb 10, 2018 1:49 pm
Forum: Drivetrain / Suspension
Topic: Low stall torque converters
Replies: 5
Views: 485

Re: Low stall torque converters

Have a Hd tow spec Torque converter coming in from Aussie. Apparently the early A340 used negative pitched vanes in turbine. Modern ones used in the likes of the Hilux D4D engines have positive pitched vanes. So the lads in Aussie are putting together one with those parts but with bigger lockup clut...
by kbushnz
Thu Feb 01, 2018 9:09 am
Forum: Toyota
Topic: what chassis can go under a ln106?
Replies: 6
Views: 508

Re: what chassis can go under a ln106?

Sausager wrote:
kbushnz wrote:I have seen a hilux cab under a swb Prado chassis...


Had someone rolled it? :lol:


Ahhh I see what you did..... lol..... my bad.... Nah was a winch challenge truck build. All certified for on road. Was using a single cab body...from memory.
by kbushnz
Thu Feb 01, 2018 5:56 am
Forum: Toyota
Topic: what chassis can go under a ln106?
Replies: 6
Views: 508

Re: what chassis can go under a ln106?

I have seen a hilux cab on a swb Prado chassis.... Coils all round. Not sure if body mounts on chassis needed moving.
And I also have a rolling swb chassis....for sale with live tags....
by kbushnz
Wed Jan 31, 2018 6:17 am
Forum: Drivetrain / Suspension
Topic: Low stall torque converters
Replies: 5
Views: 485

Re: Low stall torque converters

Will probably get a HD towing pack from Aussie. They do them all the time and have the knowledge.
Will drop stall about 500 which will be good. And tighten it all up... As mines is slushy and almost undrivable currently. Well on the open road. hahaha
by kbushnz
Tue Jan 30, 2018 6:28 pm
Forum: Drivetrain / Suspension
Topic: Low stall torque converters
Replies: 5
Views: 485

Low stall torque converters

Hi All

Anyone have any real life experiences using a low stall converter in their diesel powered trucks?
Looking at getting one from Aussie for my Landcruiser Prado. As the factory one is struggling with more torque from engine mods.

Cheers
Calvin
by kbushnz
Thu Jan 04, 2018 9:11 pm
Forum: Toyota
Topic: LJ78 vs ln65/106 diff parts
Replies: 2
Views: 255

Re: LJ78 vs ln65/106 diff parts

Unless the cvs are playing up , leave them alone. They are stronger than the hilux versions.
I used a kit from Terrain Tamer for my swivel hubs (Don Kyatt in AKL) only a few things different due to being a Jap import.
Thats the axle seal in the housing. Otherwise everything else fitted fine.
by kbushnz
Thu Jan 04, 2018 9:07 pm
Forum: Nissan
Topic: where to find part for safari
Replies: 4
Views: 376

Re: where to find part for safari

To be honest I think most people remove it and discard it.
by kbushnz
Sat Dec 30, 2017 8:53 am
Forum: Diesel Engines and Modifications
Topic: looking at getting a cert
Replies: 4
Views: 374

Re: looking at getting a cert

Save yourself some grief and find a cert and talk them thru your mods. Only they will know what they want to see and how its to be done. There is lots of knowledge on here from the guys and gals but the word from the horses mouth (cert) will be the only ones you will want to hear. Here is a link to ...
by kbushnz
Fri Dec 01, 2017 5:54 am
Forum: Tool Shed
Topic: Winch isolator
Replies: 8
Views: 476

Re: Winch isolator

Chasing stray currents is reasonably straight forward. Just need an multi-meter. You can get some that click over your power cable. Then read what its drawing with truck off.... And then start unhooking items one at a time and see if the amps drop. Normally you have a clock powered... and maybe car ...
by kbushnz
Thu Nov 30, 2017 7:16 am
Forum: Tool Shed
Topic: Winch isolator
Replies: 8
Views: 476

Re: Winch isolator

You shouldn't have any battery draw when a winch is installed. You have another issue... Most winches can draw more than 500 amps....especially on a hard pull. I get the idea you have two batteries. One for startling and an aux for the winch? and a battery iscolator to charge the main battery first ...
by kbushnz
Sat Nov 18, 2017 8:35 pm
Forum: Tool Shed
Topic: Vent for cab
Replies: 3
Views: 408

Re: Vent for cab

Cheers Tony.... That would be cool....

Calvin
by kbushnz
Sat Nov 18, 2017 8:02 am
Forum: Tool Shed
Topic: Vent for cab
Replies: 3
Views: 408

Vent for cab

Hi all After my recent bum chop on my Prado, one of the side effects is that now there is no rear air vent letting air flow out, When the last door is closed it has to act against air pressure... Also the air gets stale when driving. Naturally I could open a window but when its raining or cold.....h...
by kbushnz
Sat Nov 11, 2017 8:15 pm
Forum: Having problems?
Topic: Cooked oil
Replies: 1
Views: 281

Re: Cooked oil

I check my oil after it been running for a bit. ... ... That way the oil in the galleries haven't drained back.
If you feel you have cooked the oil, change it. Its pretty cheap compared to an engine rebuild.
