Offroad-Express

skidmark

interesting it would mean my front drive shaft would be approx 220mm shorter than it currently is, so overall length would be reduced to about 550mm long, seems quite short.drive flange would be about rear trans sump bolts.

rear shaft would need to be approx 50mm longer.

skidmark

have talked to Phil, was going to measure his but hes got a full length bashplate underneath...

and magic thank you.

skidmark

that would be appreciated. I'm actually running a 1uz auto, but I was on the understanding that I would just require the different extension housing between auto and transfer to connect everything?

cheers

skidmark

hi guys, on my ever growing quest to fit a pto/hydro winch, i was wondering if someone could take some measurements of there transmisson for me? trying to work out if i could get away with a 70 series transfer in my surf...think itll leave me with a short front drive shaft.... but if someone cold me...

skidmark

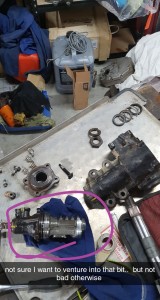

I thought I'd start investigating into my plan of fitting a pto to my trans, and started to split the parts transmission I've had sitting on the floor for at least a year- this is where it went down hill... my memory had told me the intermediate housing between the trans and transfer case was one bi...

skidmark

wow over a year since my last post, truck hasnt seen much action but recent trip to America caused some money to be spent... fitted them up over the weekend. haven't taken it for a skid yet.. 20180925_161754.jpg 20180930_143950.jpg 20180930_134055.jpg rps20180930_175341.jpg rope hanging out is ensur...

skidmark

I know my 100 is 12v only. as far as I know all 100s are just 12v start also.

skidmark

yea magic thanks for your help. that's the kinda thing i want.. shes a bit of a heavy cow, but I think the added weight of a hydro winch be more beneficial than not having it. also have a pto gear already one of our local suppliers had them listed as spare parts .

skidmark

yes there is a collar or spacer that joins the out put from auto to input of transfer that by memory is about 60-70mm long. this is where I was planning to fit the drive gear. magic, I'll add a 3-1 box to my list of items to collect. I was thinking that would be the case to allow the drive winch com...

skidmark

currently have Lexus auto with surf transfercase, which we all know has no pto drive... I have a plan which envoles some cutting and welding or plan b is a prado case but offset drive. plan a is to make a 70 series pto fit, so gear ratios should be similar to a factory prado set up. more curious if ...

skidmark

yes this is true! Didnt think to ask Phil.good bugga he is...

skidmark

i have a silly idea to want to mount a midmount hydraulic winch to me surf(the term surf is quite vague in this instance...) for a couple of reasons- bigger drum, more pull, maybe speed not essential tho. now i dont currently have the option of a pto drive but have a plan to utilise some cruiser bit...

skidmark

as I side note, I doubt that solenoid can handle 500amps..its the same as a ride on starter solenoid. I run isolators on my winches- rated to 300 odd continuous, but2500/ 3000amps intermintanly

skidmark

Trans is easy to wire into manual shift, 2 relays and a couple diodes.just using the inihator switch as your control?
I also added a transgo shift kit to the valve body, to make gear shifts a bit more positive under power. ( granted im running more power than the average kzn130 tho)

skidmark

I had thought about that bar aswell, I haven't really required it on mine yet.....ps should be sweet with clearance, looks like plenty there. The bpillar bar on mine was real tight, aprox 5-10mm in places and well let's just say the there's some nice curved clearencing been done.... about 15mm would...

skidmark

Enjoying the in-depth updates you do. Good reading

skidmark

Would suggest against tapping off the 12v battery in the 24v system. You will end up with one flat battery.
Either stand alone 12v alt,
Or 12v house battery(s?) And a 24v -12v charger to charge the house battery. A dc-dc charger or similar

skidmark

Update been back to woodhil,seems to be my go too place...sway bar makes a huge difference. So much more stabil. Defiantly will be keeping it...

Managed to explode rf freewheel hub twice tho...
Not ideal

Here's some averagely edited video tho
https://youtu.be/a-ijM76ucZA

skidmark

Brought it out of the shed once since my last post, got a wof and back in the shed.... But have roughed up a sway bar haven't driven with it but grabbing the cage and rocking it makes a huge difference. Just waiting on some misalignment spacers, to give the heims some more movement then slap some pa...

skidmark

Well haven't had it out anywhere as much I would have liked, time and money have slowed me up quite a lot...haha but using it as a tractor around the house to try pull out stumps and roots etc, managed to bend my tow bar... (spouse I did have winch doubled back attached to a tree infront....) so use...

skidmark

My trusty surf is up for grabs, it's on trademe at 14 but make a sensible offer and we shall see...

Selling because I've brought a land cruiser to tow with.
https://trademe.co.nz/1284972449

Cheers Alistair

skidmark

davemeasures wrote:Iv got a compleat 70 series pto set up if your still looking

Depends what your after for it all?

skidmark

kbushnz wrote:I like your thinking......
I know with my Prado setup there is plenty of shaft between the two in the adaptor part....... (auto)
Will watch this thread and see how yah go...

Will be a slow project when I can find parts.but will post up if it's successful

skidmark

Not wanting to go down the track of landcruiser transfer case just yet, as offset rear driveshaft)yes I know people have successfully done this in the past) Am thinking about cutting and welding a flange in the adapter between auto and transfer (mine is chain drive) and putting a drive gear in the c...

skidmark

Righto chaps, may have a plan to fit a pto onto my surf, but looking for a landcruiser pto and the auto to surf transfer case adapter to see weather my plan is feasible Prefer around the Waikato as big bulky items to ship but not essential. Also doesn't have to be in working condition if cheap Cheer...

skidmark

what setup did you use in ya trans..? as I got the same one and have been playing around with it through the lexus box but now have the prado box and looking at it again..to make it a nicer shift.. you need a bigger paddock too so you can let the horses out .. :wink: :mrgreen: It's can look up the ...

skidmark

rokhound wrote:It would appear that your only issue there is that those bloody paddocks are not big enough

Barstards have been plowed and planted now tho

skidmark

Redwinches make some aftermarket bits for them, get in contact with Phil @ force4
If you haven't already sorted something else out

Alistair

skidmark

Mattman wrote:Gutted. Where's the limiter vids???

https://youtu.be/qO-_KOFP9Lk

Finally.theres a little limiter in there..not fantastic but better than nothing.right?

skidmark

Turns out its been a while for a update... got front locker fitted. Went out for a trip to ngaroma and the hydraulic fan lunched itself.. Manga fed to track down replacement parts and fitted them. Did cambelt and water pump while was apart.Turns out they run a oil cooler factory that I hadn't known ...
