Re: Clints Cruiser Project

Postby Checkerhead » Wed Sep 09, 2015 6:43 pm

Nice one! Congrats mate.
Supercharged VH45 Surf safari winch truck in the making
viewtopic.php?f=18&t=33527&hilit=checker%2A

User avatar
Clint
Hard Yaka
Posts: 579
Joined: Tue Feb 17, 2004 12:00 pm
Location: Rotoiti (North Is)

Re: Clints Cruiser Project

Postby Clint » Tue Sep 29, 2015 7:48 am

Fully Legit! Got the cert plate on a couple of weeks ago so she's now all warranted & registered & ready for action (well, was ready for action before, ready for parking in town maybe? :wink: )

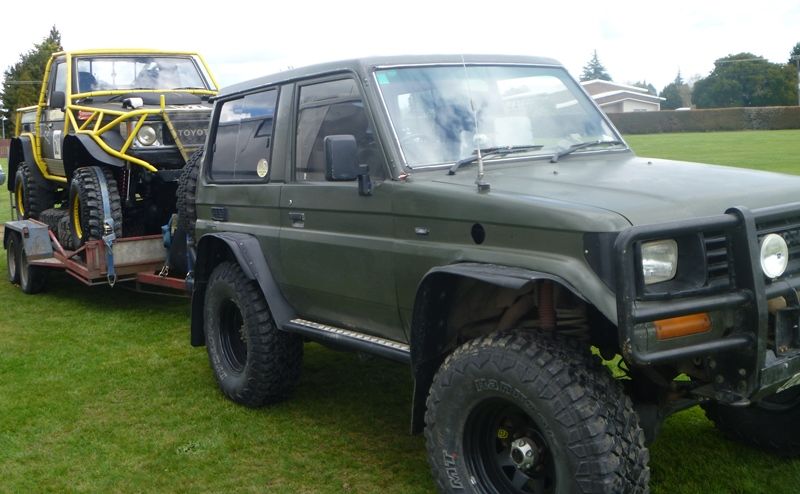

With that sorted it was promptly put to work towing Dan's race truck over to the NZ1000 last weekend:


Now it's time to move on to some tidy up work, I want to clean up a lot of the wiring in the engine bay & under the dash, strip out redundant stuff, get all the electrical accessory feeds organised etc. Also on the list is to improve the intake plumbing & check out the EFI tune to make sure it's optimised for the new gearing & exhaust changes.

Cheers
Clint
UZJ71 Landcruiser
Jeep J20 - 1UZ-FE powered (part owner)
KTM 640

If it breaks, build it stronger.
If it doesn't break, drive it harder.

Lchundy
Hard Yaka
Posts: 393
Joined: Mon Jul 26, 2010 9:45 pm

Re: Clints Cruiser Project

Postby Lchundy » Tue Sep 29, 2015 4:03 pm

Nice
Must be sweet seeing that cert plate on your truck!
Im hanging out for that day on my cruiser

User avatar
Mattman
Hard Yaka
Posts: 1643
Joined: Sun Mar 05, 2006 12:00 pm
Location: Kapiti

Re: Clints Cruiser Project

Postby Mattman » Tue Sep 29, 2015 5:14 pm

Nice work mate

User avatar
skid
Tyre Man
Posts: 6276
Joined: Thu Oct 06, 2005 12:00 pm
Location: WELLINGTON-0272417757
Contact:

Re: Clints Cruiser Project

Postby skid » Tue Sep 29, 2015 8:07 pm

Looked 'beasty' cruising the pits on the weekend :-)

Was good to see
80 Series on 35" creepies, manual with twin factory lockers.
0272417757

*CHILLAX BRO.*

User avatar
SMOKEY
Hard Yaka
Posts: 988
Joined: Thu Oct 14, 2004 12:00 pm
Location: CHRISTCHURCH

Re: Clints Cruiser Project

Postby SMOKEY » Wed Sep 30, 2015 8:59 am

Hi Clint, Thanks for the project write up , I've been following this for nine years ( being an old Cruiser fan and not so much of the old ) and it has been an interesting and informative build . As has been commented on in other threads a lot of the earlier (I won't say OLD) poster's have moved on or don't use the key board any more and as a result ORE is changing. However the new members and projects need encouragement as we all started as beginners and this is our next generation of builders/fabricators and like Mike said who will be here in another 13yrs . Back to this thread ---------- Thanks Clint and look forward to the next instalment . ----- now go and ---

GET DIRTY,

FITZY.

Eddieb
Driver/Navigator
Posts: 19
Joined: Thu Sep 10, 2015 3:20 pm
Location: Hamilton
Contact:

Re: Clints Cruiser Project

Postby Eddieb » Thu Oct 01, 2015 7:40 pm

Nice work Clint, a sweet addition to the garage beside the KTM.

Eddie

User avatar
Clint
Hard Yaka
Posts: 579
Joined: Tue Feb 17, 2004 12:00 pm
Location: Rotoiti (North Is)

Re: Clints Cruiser Project

Postby Clint » Tue Nov 03, 2015 8:12 am

Cheers guys! I've got several trips coming up this month, it's great to have it fully operational again.

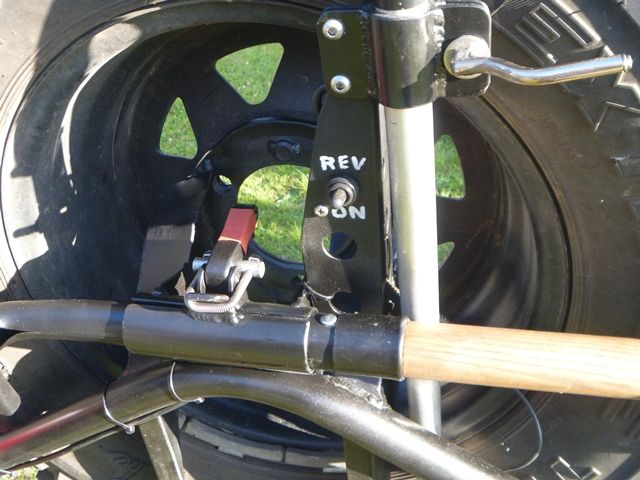

Recent shed time has seen the tyre carrier get some refinements. The bolt on bike carrier was done a while back & works great:


The reversing lights are a bit arse so have now been supplemented by an LED floodlight:


This can be raised, lowered. tilted & swiveled for a camp/work light & switched either to on or reverse.


I also made a spade mount with a nice solid latch, shortened up a spade to fit.


A stop & latch also got made to keep the whole mess in place when open.


Cheers
Clint
Last edited by Clint on Thu Feb 11, 2016 7:40 am, edited 1 time in total.
UZJ71 Landcruiser
Jeep J20 - 1UZ-FE powered (part owner)
KTM 640

If it breaks, build it stronger.
If it doesn't break, drive it harder.

User avatar
Checkerhead
Hard Yaka
Posts: 454
Joined: Sun May 25, 2014 11:20 pm
Location: Christchurch

Re: Clints Cruiser Project

Postby Checkerhead » Tue Nov 03, 2015 9:22 pm

As usual, nice work Clint.
Supercharged VH45 Surf safari winch truck in the making
viewtopic.php?f=18&t=33527&hilit=checker%2A

User avatar
Clint
Hard Yaka
Posts: 579
Joined: Tue Feb 17, 2004 12:00 pm
Location: Rotoiti (North Is)

Re: Clints Cruiser Project

Postby Clint » Wed Nov 11, 2015 1:09 pm

Had my sparky hat on this week.

This is the switched LED strip light inside the rear door I put in on tilting brackets. Cheap from Jaycar. Real nice to be able to see into the back & in the drawers at night.

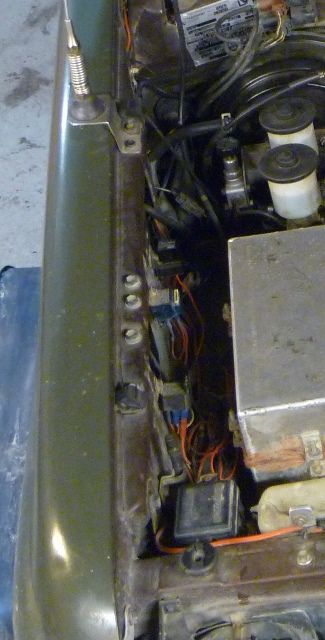

The drivers side engine bay wiring was a bit of a mess with lots of surplus original crap like the electric shocks & locking hubs etc, & a few hastily added relays that were my work.


Pulled out a huge pile of wiring right back through the firewall, tidied a bunch of stuff, put in some mounting blocks for the relays & wrapped it all back up.


Behind the dash I also stripped out some surplus crap, tidied some splices, converted the old glow plug light into a locker warning light, re-routed some accessory wiring along the loom instead of hanging down around my knees & stripped out an old keyless entry / immobiliser box that was starting to get flaky.

The left of the engine bay wiring needs a tidy up too at some point... all the engine management stuff was tidily done by Mike & is all good but there's lots of other stray stuff that needs sorting.

Cheers
Clint
Last edited by Clint on Mon Nov 16, 2015 8:32 am, edited 1 time in total.
UZJ71 Landcruiser
Jeep J20 - 1UZ-FE powered (part owner)
KTM 640

If it breaks, build it stronger.
If it doesn't break, drive it harder.

User avatar
Mattman
Hard Yaka
Posts: 1643
Joined: Sun Mar 05, 2006 12:00 pm
Location: Kapiti

Re: Clints Cruiser Project

Postby Mattman » Thu Nov 12, 2015 7:05 pm

Nice work

User avatar
Clint
Hard Yaka
Posts: 579
Joined: Tue Feb 17, 2004 12:00 pm
Location: Rotoiti (North Is)

Re: Clints Cruiser Project

Postby Clint » Mon Nov 16, 2015 8:42 am

Cruised out through to Waikaremoana on the weekend to go hunting with some mates.


The combination of the stiffer springs & shocks in the back & the 35" Hankooks has really improved the handling. It's a real pleasure to drive on twisty gravel now, better than it was on the original running gear & 33"s

Cheers
Clint
UZJ71 Landcruiser
Jeep J20 - 1UZ-FE powered (part owner)
KTM 640

If it breaks, build it stronger.
If it doesn't break, drive it harder.

User avatar
Clint
Hard Yaka
Posts: 579
Joined: Tue Feb 17, 2004 12:00 pm
Location: Rotoiti (North Is)

Re: Clints Cruiser Project

Postby Clint » Thu Apr 28, 2016 12:31 pm

On about the 9th anniversary of smacking up my passenger door at the Reefton challenge, the right combination of having some $$$ in the toy budget, remembering to look for one & actually finding one all came together & I finally got around to replacing it.

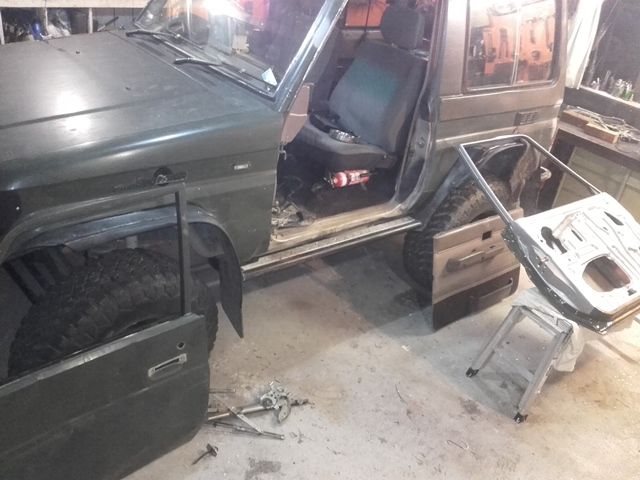

Jeez there's a lot of stuff going on inside a door with an electric window & central locking... but got it all swapped over & working good. Having a window that goes all the way up & down should win me a few brownie points from the co-driver.

Cheers
Clint
UZJ71 Landcruiser
Jeep J20 - 1UZ-FE powered (part owner)
KTM 640

If it breaks, build it stronger.
If it doesn't break, drive it harder.

User avatar
Clint
Hard Yaka
Posts: 579
Joined: Tue Feb 17, 2004 12:00 pm
Location: Rotoiti (North Is)

Re: Clints Cruiser Project

Postby Clint » Thu Nov 24, 2016 9:21 am

The cruiser has had plenty of use in the last few months. A few hunting trips, the Dirt Drags & had a great camping trip into the Urewera with some mates a couple of weeks ago:



About to get into a few jobs on it, just got a hopefully quieter Walbro fuel pump to replace the whiny Repco one. Might mount it off the chassis rather than the body too.

Also need to do the clutch as it's getting a bit tired. Fine in low range with the new transfer gears but starting to slip in high range when the jandle goes in. It's a hybrid of Nissan GTR pressure plate & 9" Toyota disc. Thinking about going to a 6 puck disc to make it a little more abuse resistant - anybody tried one of those in a 4x4 application?

Cheers
Clint
UZJ71 Landcruiser
Jeep J20 - 1UZ-FE powered (part owner)
KTM 640

If it breaks, build it stronger.
If it doesn't break, drive it harder.

User avatar
Jafa
Hard Yaka
Posts: 1306
Joined: Mon Nov 01, 2004 12:00 pm
Location: Katikati

Re: Clints Cruiser Project

Postby Jafa » Thu Nov 24, 2016 10:56 am

Looks great Clint, clutchwise, I replaced my stock one with an Exedy 5 puck copper thingy and it's great, barely notice the extra clamp force at the pedal, but it works perfectly, no letting go at all.
'85 Hilux crawler, 3rz, duals, 4.7's, 4.88's, ARB's, 30 spline Longfields, 6 stud SNR4x4 Histeer, Airshocks up front, coiled rear, 40" Iroks.
^^^this shite is all about to change....^^^

021 273 9942
jafa@inspire.net.nz

User avatar
Clint
Hard Yaka
Posts: 579
Joined: Tue Feb 17, 2004 12:00 pm
Location: Rotoiti (North Is)

Re: Clints Cruiser Project

Postby Clint » Thu Nov 24, 2016 12:54 pm

Cheers Mate! Good info. Will get a price on one today. The puck clutch isn't too grabby on engagement?

Clint
UZJ71 Landcruiser
Jeep J20 - 1UZ-FE powered (part owner)
KTM 640

If it breaks, build it stronger.
If it doesn't break, drive it harder.

User avatar
Jafa
Hard Yaka
Posts: 1306
Joined: Mon Nov 01, 2004 12:00 pm
Location: Katikati

Re: Clints Cruiser Project

Postby Jafa » Thu Nov 24, 2016 1:59 pm

Clint wrote:Cheers Mate! Good info. Will get a price on one today. The puck clutch isn't too grabby on engagement?

Clint

A little, but nothing to worry about, you can still ride it a bit, just takes a run to get used to it :mrgreen: I was a little worried about the issue, having only a little 4 banger, but really was worried about nothing, pleasantly surprised.
'85 Hilux crawler, 3rz, duals, 4.7's, 4.88's, ARB's, 30 spline Longfields, 6 stud SNR4x4 Histeer, Airshocks up front, coiled rear, 40" Iroks.
^^^this shite is all about to change....^^^

021 273 9942
jafa@inspire.net.nz

User avatar
Clint
Hard Yaka
Posts: 579
Joined: Tue Feb 17, 2004 12:00 pm
Location: Rotoiti (North Is)

Re: Clints Cruiser Project

Postby Clint » Thu Nov 24, 2016 6:14 pm

Bugger - Exedy only sell clutches as kits - they won't mix & match parts. Might have to look elsewhere for a puck clutch disc.

BNT will do me an HD pressure plate on it's own, & a basic disc on it's own so that's one option. Another is a rebuild/improve of the old bits by Autoclutch in Auckland. The guy there seemed to know what he was on about, reckoned they could do some bling friction material, plus a pressure plate rebuild with a bit extra clamp. Anybody dealt with those guys?

Cheers
Clint
UZJ71 Landcruiser
Jeep J20 - 1UZ-FE powered (part owner)
KTM 640

If it breaks, build it stronger.
If it doesn't break, drive it harder.

User avatar
Jafa
Hard Yaka
Posts: 1306
Joined: Mon Nov 01, 2004 12:00 pm
Location: Katikati

Re: Clints Cruiser Project

Postby Jafa » Thu Nov 24, 2016 7:00 pm

http://www.pro-wholesale.co.nz/

I dealt with these guys in Tauranga, he was really helpful, and he managed to mix and match exedy bits for me.
'85 Hilux crawler, 3rz, duals, 4.7's, 4.88's, ARB's, 30 spline Longfields, 6 stud SNR4x4 Histeer, Airshocks up front, coiled rear, 40" Iroks.
^^^this shite is all about to change....^^^

021 273 9942
jafa@inspire.net.nz

User avatar
Clint
Hard Yaka
Posts: 579
Joined: Tue Feb 17, 2004 12:00 pm
Location: Rotoiti (North Is)

Re: Clints Cruiser Project

Postby Clint » Tue Dec 20, 2016 10:33 am

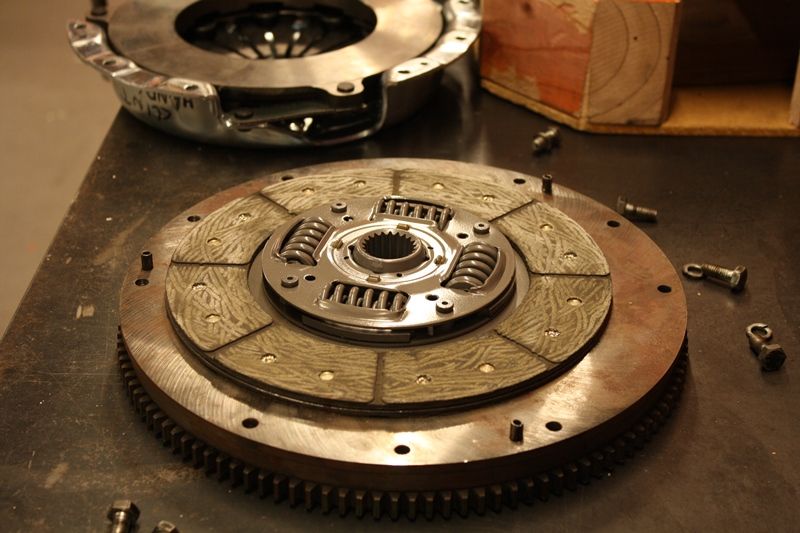

BNT Rotorua tracked me down a heavy duty Exedy pressure plate (I think it probably came from Pro wholesale) for not much more $$ than std. The diaphragm is definitely thicker than the old one so hopefully it isn't too heavy (could put on a remote booster if required I suppose) They also ground the flywheel. I got the old friction disc re-lined with a carbon-kevlar compound at Auto-Clutch in Auckland, cheaper than a new plate & they reckon it's a big improvement in durability over std. Unfortunately you need to freight the whole mess up there & back so they can get it set up just right so no saving after that's paid.

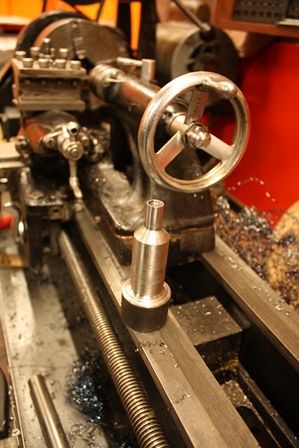

Over to the machine shop to make a clutch aligner...

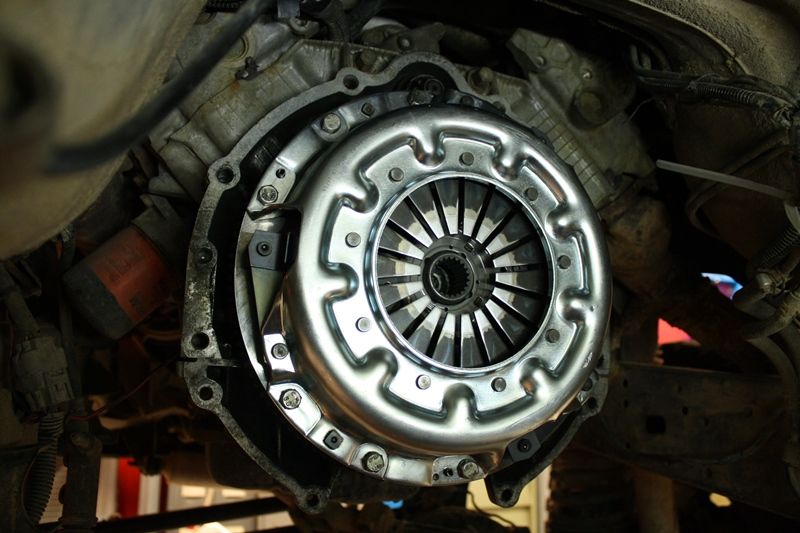

& in she goes:


Now waiting on the gearbox. Sent that into Driveline Automotive for a birthday as it was a bit noisy. Some gears needed replacing, hopefully the spare parts gearbox I gave them also has the right bits in it in good shape.

The Walbro fuel pump is now in & is definitely quieter than the rowdy Fuelmiser Repco job.

So hopefully we will soon be back to this... without the clutch smoke :P

(cheers to the photo guy at the dirt drags!)

Cheers
Clint
UZJ71 Landcruiser
Jeep J20 - 1UZ-FE powered (part owner)
KTM 640

If it breaks, build it stronger.
If it doesn't break, drive it harder.

User avatar
Clint
Hard Yaka
Posts: 579
Joined: Tue Feb 17, 2004 12:00 pm
Location: Rotoiti (North Is)

Re: Clints Cruiser Project

Postby Clint » Fri Mar 10, 2017 1:22 pm

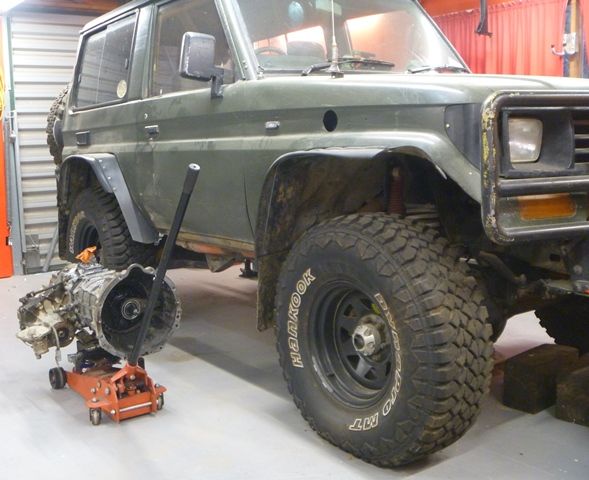

Finally got the gearbox back in. The parts box I had was also worn out. While it's got an R150F trans like a million other Toyota 4wds, turns out the LJ71 version is a bit different, new bits were $$$ ex Japan, I couldn't find any other decent bits around, but the guys at Driveline had a a few old boxes out the back & eventually managed to find a good layshaft & input shaft to go in along with some new bearings.


My rough-as gearbox positioner cradle worked mint. A steel frame bolted to the trans mount & the trolley jack & welded together in place before removal so it sat at the right angle, with a scissor jack at one end for adjustment. Made the trans swap an easy 1 man job. All bolted to the motor now, looks like good shed weather this weekend so should get everything else connected & back together & knock off a few other minor jobs.

Cheers
Clint
UZJ71 Landcruiser
Jeep J20 - 1UZ-FE powered (part owner)
KTM 640

If it breaks, build it stronger.
If it doesn't break, drive it harder.

User avatar
Clint
Hard Yaka
Posts: 579
Joined: Tue Feb 17, 2004 12:00 pm
Location: Rotoiti (North Is)

Re: Clints Cruiser Project

Postby Clint » Mon Mar 20, 2017 10:30 am

Rolling again! Gearbox all in & working nice. The transfer case gears are still a bit noisy though, trying a different oil hasn't helped there. Might look into some of that soundproof matting for under the carpet. New clutch is working well, doesn't seem too much heavier at the pedal.

Planning a bit of an expedition to the Mainland next month so I've been re-jigging the storage setup in the back to house our new car fridge & add a few refinements to make it nicer to camp out of. The boxes in the back have done pretty good service for 10 years:

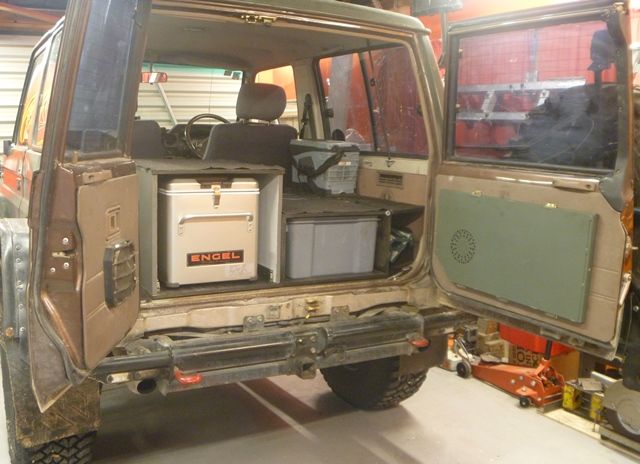

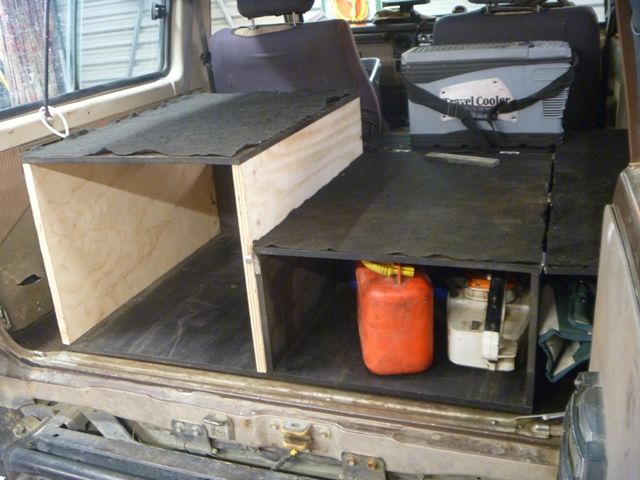

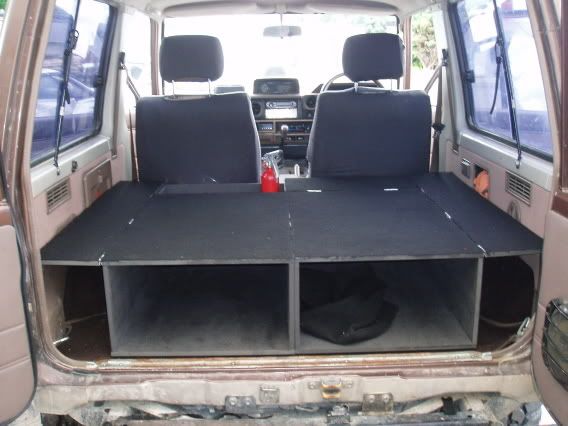

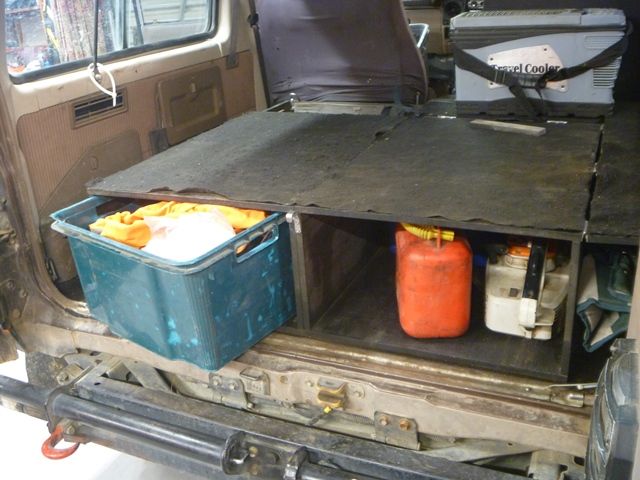

The initial plan of drawers never happened after I found that 2 plastic bins per side would slide in nicely:

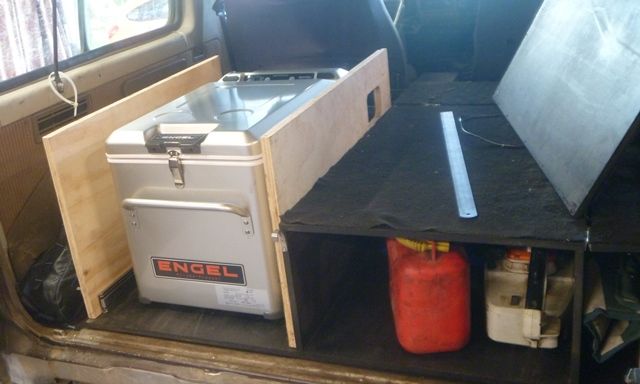

The modular design has made modding one section to fit the fridge really easy.


I got some 60kg full extension drawer sliders off Fullie on trademe, an alu drawer will mount on these to hold the fridge.


Where the old cooler used to sit in front I'll mount a 50A/hr sealed battery which should run the fridge for a couple of days.

Also being made is an alu tray that folds down off the back door, angle frame & 3mm base:


Cheers
Clint
UZJ71 Landcruiser
Jeep J20 - 1UZ-FE powered (part owner)
KTM 640

If it breaks, build it stronger.
If it doesn't break, drive it harder.

Big
Hard Yaka
Posts: 2113
Joined: Thu Nov 03, 2005 12:00 pm
Location: central Otago
Contact:

Re: Clints Cruiser Project

Postby Big » Mon Mar 20, 2017 5:02 pm

what ever you do do not put a GL4/5 mix into the transfer.. use GL4 only or it will self destruct..trust me the thrust washers will degrade the bronze and it'll just turn to custard from there :wink:

User avatar
Clint
Hard Yaka
Posts: 579
Joined: Tue Feb 17, 2004 12:00 pm
Location: Rotoiti (North Is)

Re: Clints Cruiser Project

Postby Clint » Tue Mar 21, 2017 6:56 am

Big wrote:what ever you do do not put a GL4/5 mix into the transfer.. use GL4 only or it will self destruct..trust me the thrust washers will degrade the bronze and it'll just turn to custard from there :wink:


Great info thanks, but I'm not sure I've got any thrust washers left in there, they're only on the layshaft right? The Mark's Adapters low range gears come with a new layshaft assembly that runs on taper roller bearings to eliminate the thrust washers.

Cheers
Clint
UZJ71 Landcruiser
Jeep J20 - 1UZ-FE powered (part owner)
KTM 640

If it breaks, build it stronger.
If it doesn't break, drive it harder.

User avatar
Clint
Hard Yaka
Posts: 579
Joined: Tue Feb 17, 2004 12:00 pm
Location: Rotoiti (North Is)

Re: Clints Cruiser Project

Postby Clint » Fri Mar 24, 2017 9:03 am

The Bar is open :D



Now waiting on the alu tray that is being bent up at a local engineering outfit, this will be the drawer for the fridge. Just ordered a gel cell battery to run the fridge when the wagon is off, about to hit up jaycar for a dual battery controller relay & some cables to hook it up.

Cheers
Clint
UZJ71 Landcruiser
Jeep J20 - 1UZ-FE powered (part owner)
KTM 640

If it breaks, build it stronger.
If it doesn't break, drive it harder.
