96 v6 surf

User avatar
mudsurfv6
Hard Yaka
Posts: 631
Joined: Fri May 23, 2014 6:29 pm
Location: pahiatua

96 v6 surf

Postby mudsurfv6 » Sat Feb 28, 2015 9:13 pm



might as well start this thread.
96 vzn185 surf, standard, for now.
will be a slow build, as time and money allows.

plan is (no doubt will change)...

sas prado diff with hilux axles surf hubs, prado trailing arms. lokka locker.
ln130 transfer case. (kzn130 in there instead)
rear electric prado locker in rear.(in a 90 series prado diff, so got disk brakes)
change to 4.3 diff heads, from 4.1
35x16 goodride mud legend for road and simex et off.
2 inch body lift.
hopefully lift fuel tank 2 inches.
front 2 inch lifted prado springs/shocks.(wouldn't fit, so factory struts for now, they lifted it 4")
rear standard 80 series springs/shocks.(had to get 4" lifted springs to keep same as front, 2" lifted 80 shocks)
TRD supercharger. URD kit.
snorkel (just a cheap one until the exo gets done).
cross over steering. 70 series? 130 steering box.(80 series box better fit)
take air bags out.
HID head lights, factory aren't that great. (lvvta say can't just change bulbs, got to change whole lamp. :evil: )
+++

cert.

save up $.

some bar work, got a 12000lb runva to mount in back for forwards and reverse pulling. will put a 9500lb on front.
twin alternators. two batteries. (front bar done, with 12000 runva in it)

save up heaps more $.

probably a year or two away.

cut cab down behind back seats.?
simple exo cage incorporating snorkel for body protection. winch challenge specs.? might need a 6 point internal cage by the sounds of it?
small rear deck hopefully end up like a ute flat deck ish, for pigs deer, or for carrying dogs, whatever...
rear disk brake conversion. change whole diff or use what? (done)

cert.

at some stage

lights.
pull all carpets out.
transmission cooler.(done)
bead locks.(got stauns waiting)
change front seats and add 5 point belts.
air tank and compressors for tyres.

be more....
Last edited by mudsurfv6 on Sat Sep 24, 2016 4:50 pm, edited 6 times in total.
1996 vzn185 surf, TRD supercharger, SAS, 35s, 4" lift, 2 lockers, ute chopped + more happening. Andrew 0272226292.

Sheepy
Hard Yaka
Posts: 206
Joined: Thu Feb 27, 2014 2:03 pm
Location: Beachlands, Auckland

Re: 96 v6 surf

Postby Sheepy » Sat Feb 28, 2015 10:50 pm

Cool to see a 185 getting the treatment.

User avatar
Crash bandicoot
Hard Yaka
Posts: 2924
Joined: Thu Dec 30, 2010 7:19 pm
Location: Towing a hilux

Re: 96 v6 surf

Postby Crash bandicoot » Sun Mar 01, 2015 6:22 pm

you may find it is easier to get a double cab shell with just the rear door's then bolt all you panels/front doors lights n grill etc to it, as you may have the same issue i have coming up.....it is the back seat seatbelt tensioners sit behind the C pillar.
Waiter...there is a drought in my glass.

User avatar
mudsurfv6
Hard Yaka
Posts: 631
Joined: Fri May 23, 2014 6:29 pm
Location: pahiatua

Re: 96 v6 surf

Postby mudsurfv6 » Sun Mar 01, 2015 6:27 pm

Crash bandicoot wrote: back seat seatbelt tensioners sit behind the C pillar.


hadn't looked at that. might end up making it a bob tailed well side.
Last edited by mudsurfv6 on Sun Mar 01, 2015 6:36 pm, edited 1 time in total.
1996 vzn185 surf, TRD supercharger, SAS, 35s, 4" lift, 2 lockers, ute chopped + more happening. Andrew 0272226292.

User avatar
mudsurfv6
Hard Yaka
Posts: 631
Joined: Fri May 23, 2014 6:29 pm
Location: pahiatua

Re: 96 v6 surf

Postby mudsurfv6 » Sun Mar 01, 2015 6:33 pm

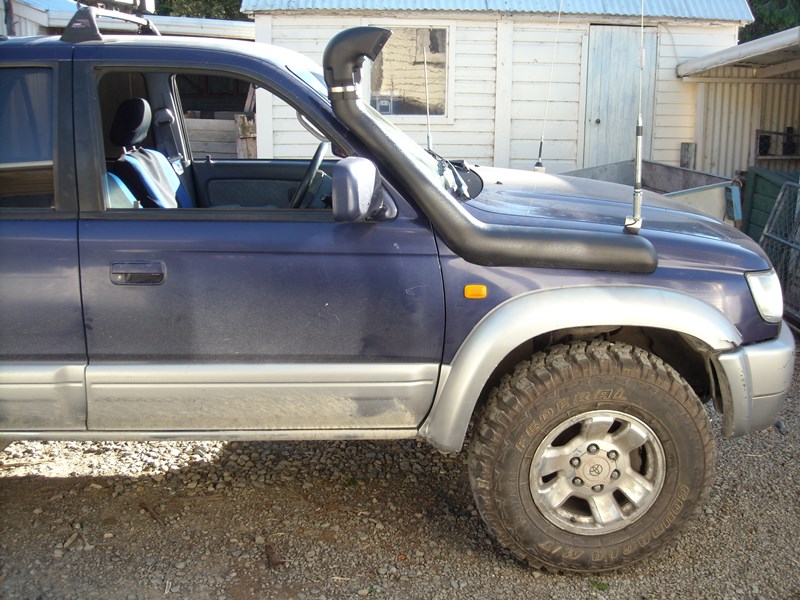

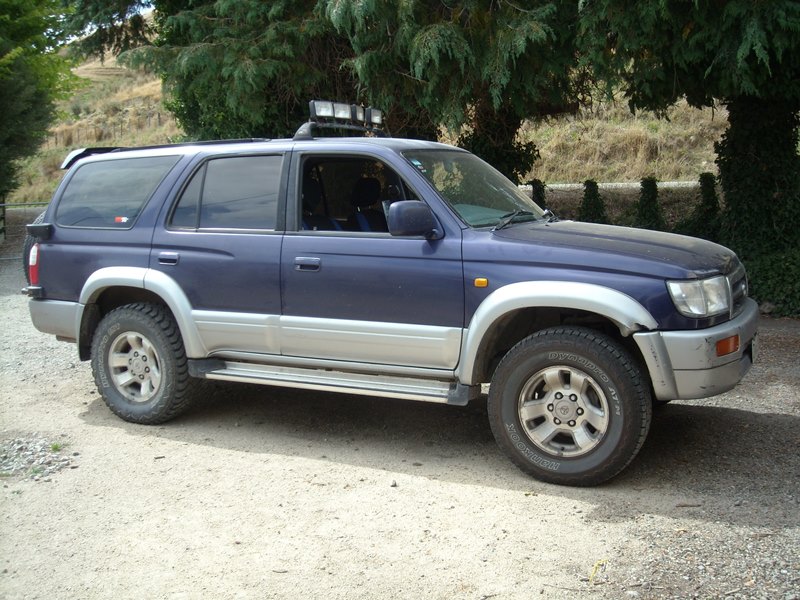

a bit been done. running boards off. snorkel on. uhf and am radios in. 265 75 16 federal couragia mts on for now, keeps it wofable.
1996 vzn185 surf, TRD supercharger, SAS, 35s, 4" lift, 2 lockers, ute chopped + more happening. Andrew 0272226292.

User avatar
mudsurfv6
Hard Yaka
Posts: 631
Joined: Fri May 23, 2014 6:29 pm
Location: pahiatua

Re: 96 v6 surf

Postby mudsurfv6 » Sun May 03, 2015 7:41 pm

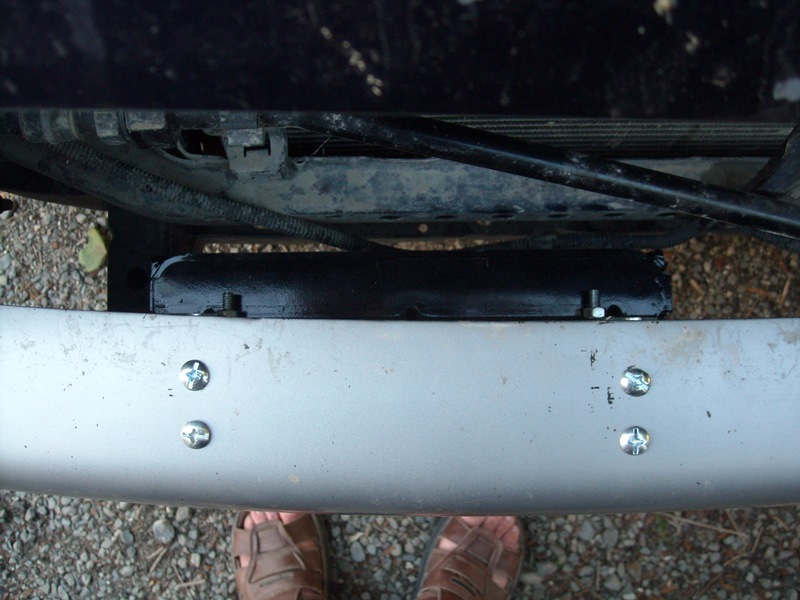

had a few spare minutes, fitted the trans cooler behind front bumper. just got to find time to change hoses over from bottom of radiator.
will get changed one day when front bar gets done.
1996 vzn185 surf, TRD supercharger, SAS, 35s, 4" lift, 2 lockers, ute chopped + more happening. Andrew 0272226292.

User avatar
mudsurfv6
Hard Yaka
Posts: 631
Joined: Fri May 23, 2014 6:29 pm
Location: pahiatua

Re: 96 v6 surf

Postby mudsurfv6 » Sun Aug 30, 2015 7:36 pm

slow progress. 2" body lift done.
Attachments
1996 vzn185 surf, TRD supercharger, SAS, 35s, 4" lift, 2 lockers, ute chopped + more happening. Andrew 0272226292.

dvk-kp
Hard Yaka
Posts: 265
Joined: Sat Mar 28, 2009 10:48 am
Location: Dannevirke

Re: 96 v6 surf

Postby dvk-kp » Sun Aug 30, 2015 7:48 pm

Coming along nicely Andrew. Going to be a beast when it's done. 8)

User avatar
mudsurfv6
Hard Yaka
Posts: 631
Joined: Fri May 23, 2014 6:29 pm
Location: pahiatua

Re: 96 v6 surf

Postby mudsurfv6 » Sun Aug 30, 2015 8:30 pm

dvk-kp wrote:Coming along nicely Andrew. Going to be a beast when it's done.


can't wait till its done :D

nearly got all the parts. looks like going to use a prado transfer now instead of 130 surf so will have pto.
1996 vzn185 surf, TRD supercharger, SAS, 35s, 4" lift, 2 lockers, ute chopped + more happening. Andrew 0272226292.

dvk-kp
Hard Yaka
Posts: 265
Joined: Sat Mar 28, 2009 10:48 am
Location: Dannevirke

Re: 96 v6 surf

Postby dvk-kp » Sun Aug 30, 2015 8:55 pm

Good news. Pto would be handy... God winch for the win haha :D

User avatar
mudsurfv6
Hard Yaka
Posts: 631
Joined: Fri May 23, 2014 6:29 pm
Location: pahiatua

Re: 96 v6 surf

Postby mudsurfv6 » Sun Aug 30, 2015 9:37 pm

dvk-kp wrote:God winch for the win haha


would be nice but not gonna have much room now, once its double cabbed gotta fit spare wheel, big ass truck battery & two electric winches under flat deck.
Last edited by mudsurfv6 on Mon Aug 31, 2015 6:49 am, edited 1 time in total.
1996 vzn185 surf, TRD supercharger, SAS, 35s, 4" lift, 2 lockers, ute chopped + more happening. Andrew 0272226292.

User avatar
mudsurfv6
Hard Yaka
Posts: 631
Joined: Fri May 23, 2014 6:29 pm
Location: pahiatua

Re: 96 v6 surf

Postby mudsurfv6 » Mon Aug 31, 2015 6:49 am

dvk-kp wrote:God winch for the win haha


you got me thinking last night, might be worth looking into. have to put the spare on top of deck though.
1996 vzn185 surf, TRD supercharger, SAS, 35s, 4" lift, 2 lockers, ute chopped + more happening. Andrew 0272226292.

dvk-kp
Hard Yaka
Posts: 265
Joined: Sat Mar 28, 2009 10:48 am
Location: Dannevirke

Re: 96 v6 surf

Postby dvk-kp » Mon Aug 31, 2015 7:13 am

After watching the videos on the net of them I reckon it would be worth the effort. Gees they are impressive!

User avatar
mudsurfv6
Hard Yaka
Posts: 631
Joined: Fri May 23, 2014 6:29 pm
Location: pahiatua

Re: 96 v6 surf

Postby mudsurfv6 » Mon Oct 26, 2015 1:55 pm

ok, transfer case changed to a kzn130 one. wiring not done yet so haven't got 4wd or speedo. get to it one day. had to change to a VZN130 rear driveshaft because 130 transfer is shorter. also the crossmember under the transfer case got moved back to suit the mount.

picked up a 90/95 series prado rear diff so will have rear disk brakes. will fit the electric locker into it sometime, a bit of welding & cutting to come.

started on SAS.

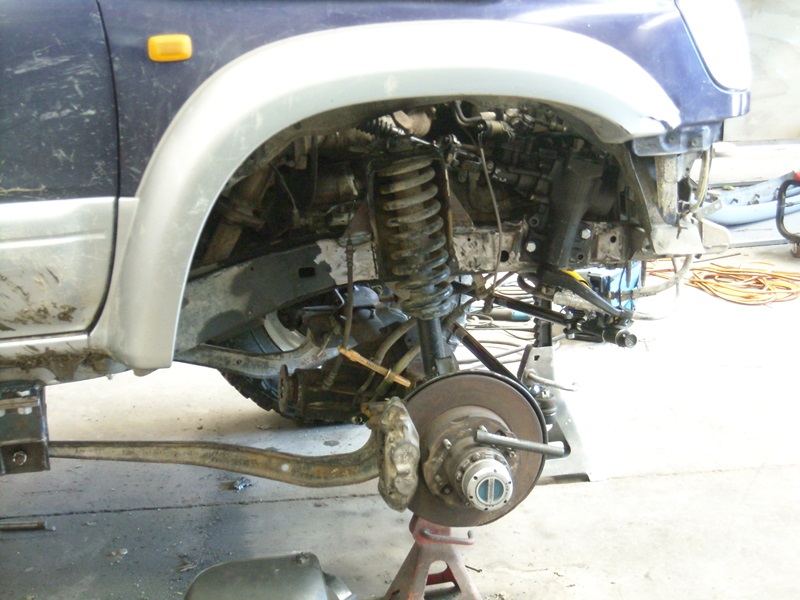

before


before

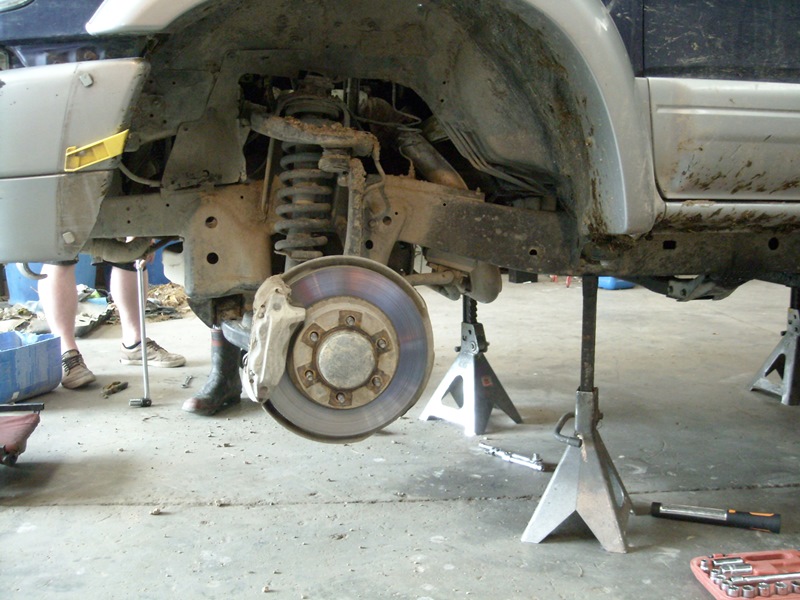

DSCN7439 (2).JPG

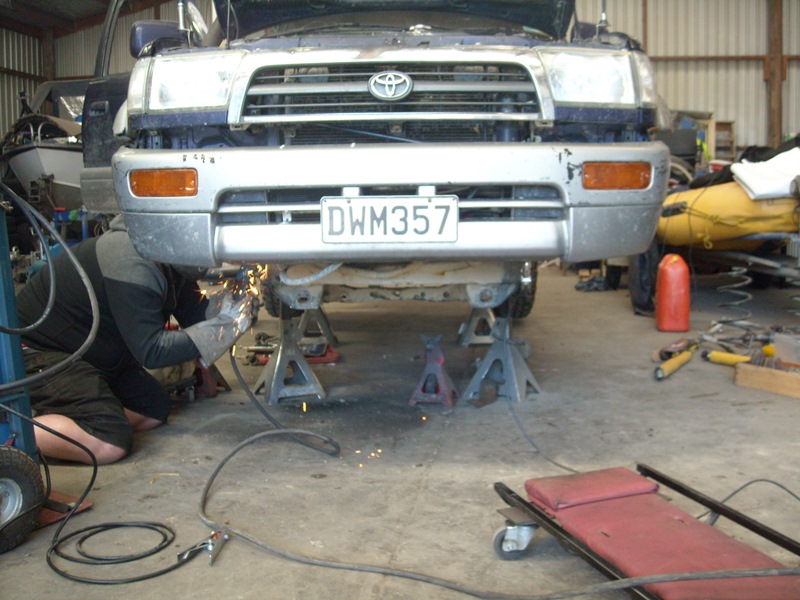

a bit of grinding


no suspension
1996 vzn185 surf, TRD supercharger, SAS, 35s, 4" lift, 2 lockers, ute chopped + more happening. Andrew 0272226292.

User avatar
mudsurfv6
Hard Yaka
Posts: 631
Joined: Fri May 23, 2014 6:29 pm
Location: pahiatua

Re: 96 v6 surf

Postby mudsurfv6 » Mon Oct 26, 2015 2:02 pm

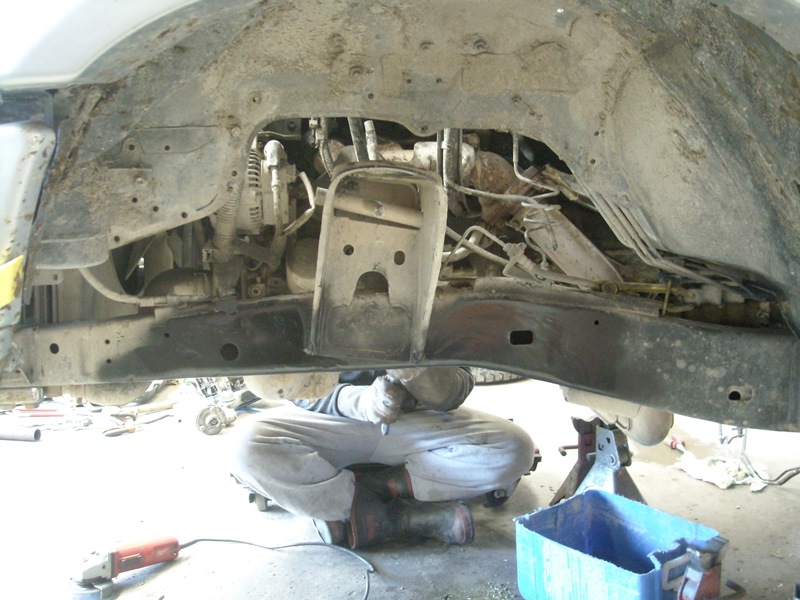

DSCN7441 (2).JPG
most gone

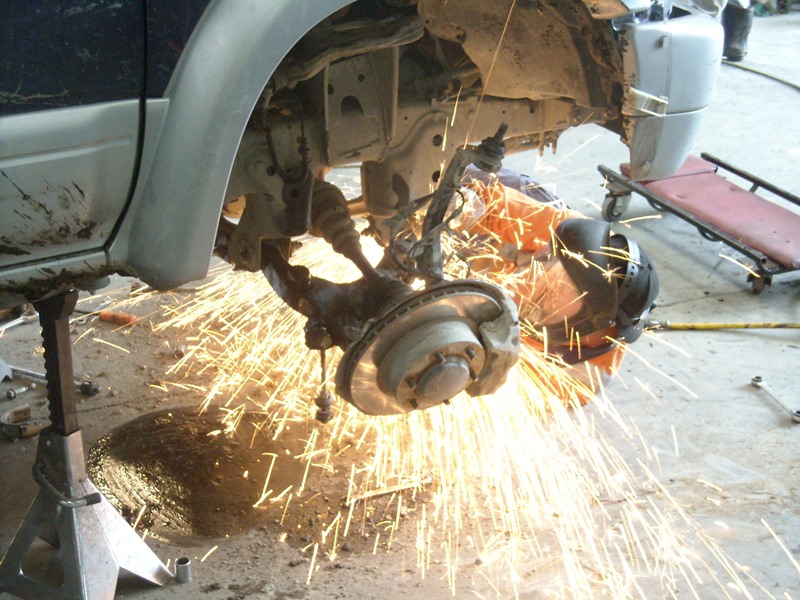

plasma


DSCN7445 (2).JPG

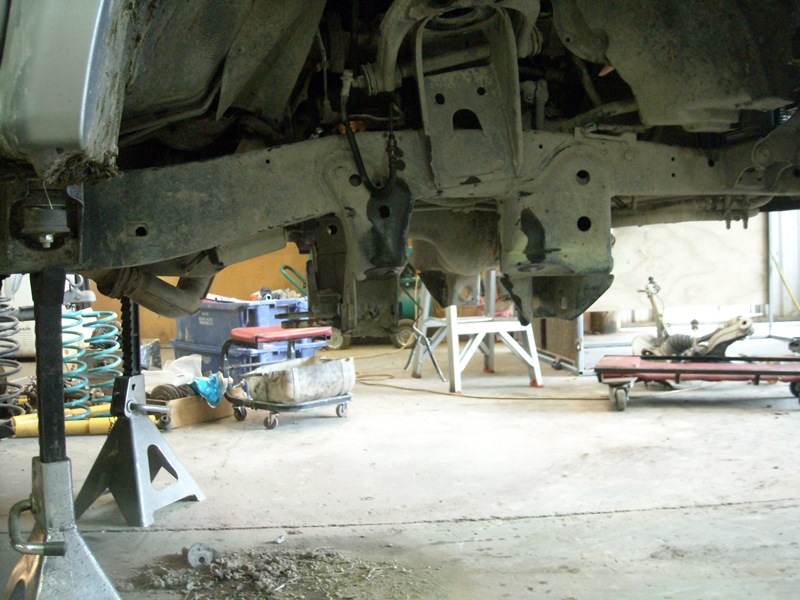

cleaned off


sitting there


factory struts, a bit of an issue.
1996 vzn185 surf, TRD supercharger, SAS, 35s, 4" lift, 2 lockers, ute chopped + more happening. Andrew 0272226292.

User avatar
mudsurfv6
Hard Yaka
Posts: 631
Joined: Fri May 23, 2014 6:29 pm
Location: pahiatua

Re: 96 v6 surf

Postby mudsurfv6 » Mon Oct 26, 2015 2:07 pm

still got to change hubs to surf ones.

didn't realise chassis too wide to use prado springs & shocks, so ended up using the factory struts. bit too hard. its sitting right at bottom of suspension.

see viewtopic.php?f=13&t=44769

also sump isn't going to work, need a rear sump.

see viewtopic.php?f=22&t=44758
1996 vzn185 surf, TRD supercharger, SAS, 35s, 4" lift, 2 lockers, ute chopped + more happening. Andrew 0272226292.

User avatar
vvilly
Hard Yaka
Posts: 1134
Joined: Mon Dec 29, 2008 11:57 am
Location: Rangiora
Contact:

Re: 96 v6 surf

Postby vvilly » Mon Oct 26, 2015 6:21 pm

If you gonna use the surf front struts. The early sheep shagga ones have the same mounts but give 3 inches of lift
LIFT YOUR TRUCK FAT CHICKS CANT JUMP

User avatar
mudsurfv6
Hard Yaka
Posts: 631
Joined: Fri May 23, 2014 6:29 pm
Location: pahiatua

Re: 96 v6 surf

Postby mudsurfv6 » Mon Oct 26, 2015 6:26 pm

vvilly wrote:If you gonna use the surf front struts. The early sheep shagga ones have the same mounts but give 3 inches of lift


ok, is that if they are mounted on top of diff? the surf ones have given about 5" of lift, but are too hard & its sitting with the springs completely extended. would the shagger ones be softer?
1996 vzn185 surf, TRD supercharger, SAS, 35s, 4" lift, 2 lockers, ute chopped + more happening. Andrew 0272226292.

User avatar
vvilly
Hard Yaka
Posts: 1134
Joined: Mon Dec 29, 2008 11:57 am
Location: Rangiora
Contact:

Re: 96 v6 surf

Postby vvilly » Mon Oct 26, 2015 7:09 pm

I cant answer that but alot of the 4 runner dudes in the states use them to give them 3 inches of lift.
LIFT YOUR TRUCK FAT CHICKS CANT JUMP

User avatar
mudsurfv6
Hard Yaka
Posts: 631
Joined: Fri May 23, 2014 6:29 pm
Location: pahiatua

Re: 96 v6 surf

Postby mudsurfv6 » Mon Oct 26, 2015 7:27 pm

will have to look into it.
1996 vzn185 surf, TRD supercharger, SAS, 35s, 4" lift, 2 lockers, ute chopped + more happening. Andrew 0272226292.

User avatar
mudsurfv6
Hard Yaka
Posts: 631
Joined: Fri May 23, 2014 6:29 pm
Location: pahiatua

Re: 96 v6 surf

Postby mudsurfv6 » Sat Nov 07, 2015 8:36 pm

going to just stick with the factory struts for now and see where it sits once we have added weight to the front. winch bar. winch. supercharger. etc. have ordered 4" lift rear springs to sit it nearer level, and going to use 2" lifted 80 series shocks which are 4" longer than surf ones.

bit more done.

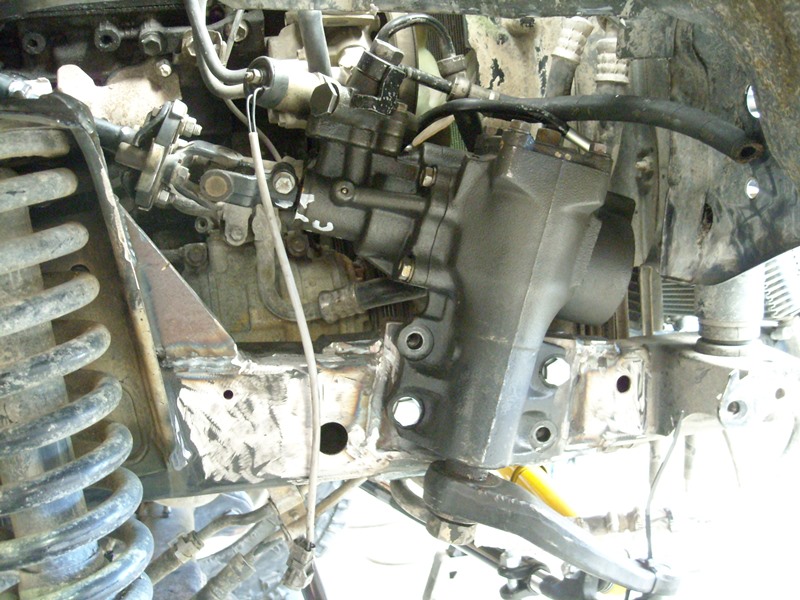

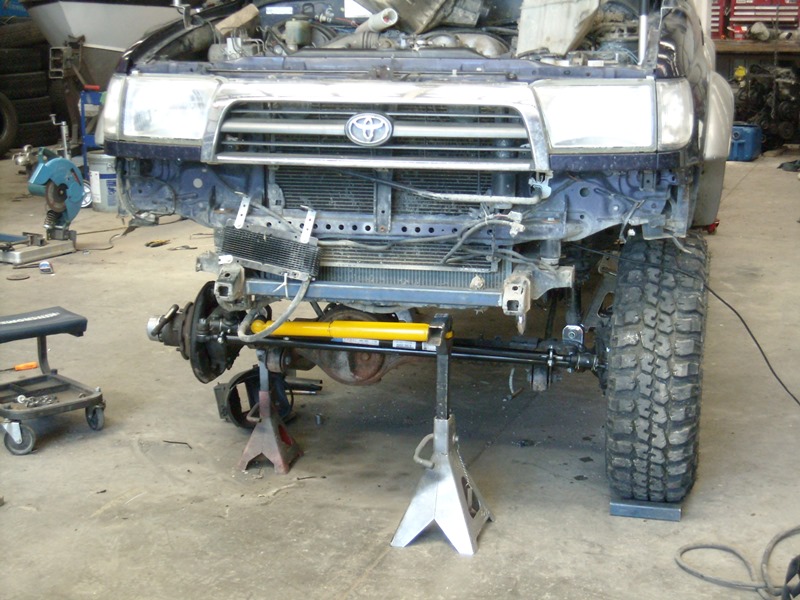

70 series steering


80 series box
Last edited by mudsurfv6 on Sat Nov 21, 2015 8:22 pm, edited 1 time in total.
1996 vzn185 surf, TRD supercharger, SAS, 35s, 4" lift, 2 lockers, ute chopped + more happening. Andrew 0272226292.

User avatar
mudsurfv6
Hard Yaka
Posts: 631
Joined: Fri May 23, 2014 6:29 pm
Location: pahiatua

Re: 96 v6 surf

Postby mudsurfv6 » Sat Nov 21, 2015 8:18 pm

electric locker into 90 series prado diff.

ready


in
Last edited by mudsurfv6 on Sat Nov 05, 2016 8:13 am, edited 1 time in total.
1996 vzn185 surf, TRD supercharger, SAS, 35s, 4" lift, 2 lockers, ute chopped + more happening. Andrew 0272226292.

User avatar
mudsurfv6
Hard Yaka
Posts: 631
Joined: Fri May 23, 2014 6:29 pm
Location: pahiatua

Re: 96 v6 surf

Postby mudsurfv6 » Sun Dec 13, 2015 5:55 pm

on the trailer back home to get a bit done over xmas.

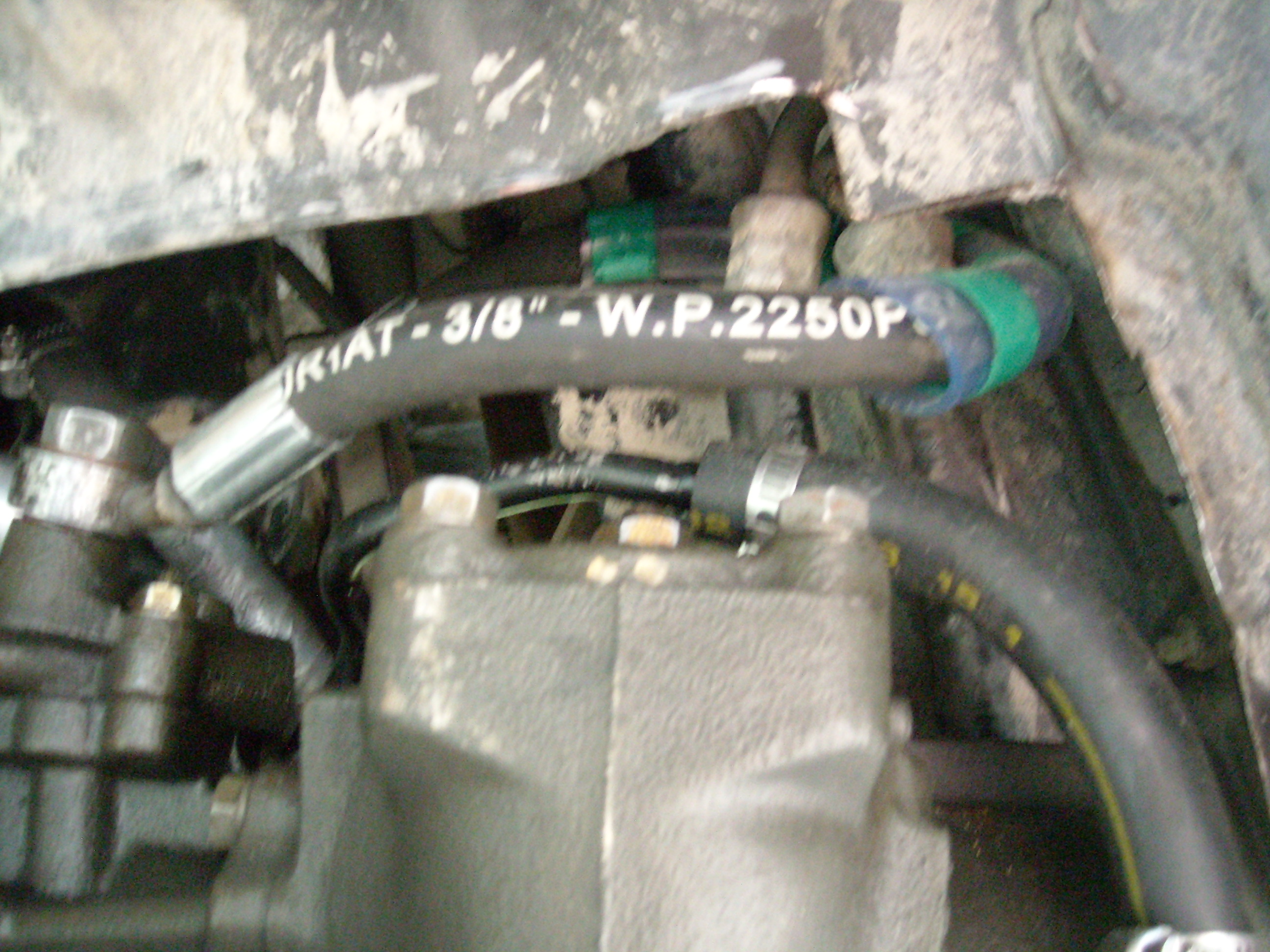

steering all done, need to get made a power steering hose between pump & 80 series box.

35" mud legends on 80 series rims, will see how they go as road wheels.

waiting for sump pan, then can swap that.

when rear springs turn up then can put prado diff in place.

surf hubs to swap onto it.

thanks for the work Cole, good job.
1996 vzn185 surf, TRD supercharger, SAS, 35s, 4" lift, 2 lockers, ute chopped + more happening. Andrew 0272226292.

User avatar
mudsurfv6
Hard Yaka
Posts: 631
Joined: Fri May 23, 2014 6:29 pm
Location: pahiatua

Re: 96 v6 surf

Postby mudsurfv6 » Fri Dec 25, 2015 5:22 pm

steering hose made & fitted. getting pretty busy in that small space.



ps cooler fitted, not overly long but hopefully better than nothing.



so now running again, need to fit another windscreen washer tank though, not enough room below drivers side headlight anymore.
1996 vzn185 surf, TRD supercharger, SAS, 35s, 4" lift, 2 lockers, ute chopped + more happening. Andrew 0272226292.

User avatar
mudlva
Hard Yaka
Posts: 2918
Joined: Mon Apr 16, 2007 12:00 pm
Location: fixing another cv!! dam lockers (Papakura)

Re: 96 v6 surf

Postby mudlva » Fri Dec 25, 2015 5:46 pm

As the power steering bloke said to me. You can not have to much cooling. More so when running big flat tyres

User avatar
mudsurfv6
Hard Yaka
Posts: 631
Joined: Fri May 23, 2014 6:29 pm
Location: pahiatua

Re: 96 v6 surf

Postby mudsurfv6 » Fri Dec 25, 2015 6:46 pm

mudlva wrote: You can not have to much cooling.


yep, especially after supercharger is fitted.

going to put vents towards both back corners of bonnet, also two 10" electric fans in the bulge in bonnet above supercharger to suck as much heat out as possible when going slow off road. when on road & fans off they will still vent around blades.

tomorrows job swap sump pan & pick up etc to rear sump from a T100. hopefully reasonably simple.... :? :roll:
1996 vzn185 surf, TRD supercharger, SAS, 35s, 4" lift, 2 lockers, ute chopped + more happening. Andrew 0272226292.

User avatar
lax2wlg
Hard Yaka
Posts: 1437
Joined: Sat May 12, 2012 8:33 pm
Location: Various areas

Re: 96 v6 surf

Postby lax2wlg » Fri Dec 25, 2015 10:02 pm

Cool. Interesting use of factory struts. For the spring height issue, have you considered cutting the springs? Ie removing one coil?

How much stroke do the factory shocks have?
TOYOTA - The Official Vehicle of ISIS!
And makers of the '92 Camry, where you got your first backseat handjob.

User avatar
mudsurfv6
Hard Yaka
Posts: 631
Joined: Fri May 23, 2014 6:29 pm
Location: pahiatua

Re: 96 v6 surf

Postby mudsurfv6 » Sat Dec 26, 2015 7:37 am

lax2wlg wrote:For the spring height issue, have you considered cutting the springs? Ie removing one coil?


have thought of that, but going to wait until we have added winch bar & winch in a couple of weeks, and then hopefully the supercharger. see what that weight does to the front.

lax2wlg wrote:How much stroke do the factory shocks have?


haven't measured them. we were planning on using prado 2" lifted coils & shocks but chassis too wide. the factory struts were the only other things we had sitting there so just put them back in instead.
will see how they go and change them later if doesn't work out.
1996 vzn185 surf, TRD supercharger, SAS, 35s, 4" lift, 2 lockers, ute chopped + more happening. Andrew 0272226292.

User avatar
Madaz
Hard Yaka
Posts: 1040
Joined: Mon Sep 05, 2005 12:00 pm
Location: Hamilton

Re: 96 v6 surf

Postby Madaz » Sat Dec 26, 2015 8:05 am

mudsurfv6 wrote:
mudlva wrote: You can not have to much cooling.


yep, especially after supercharger is fitted.

going to put vents towards both back corners of bonnet, also two 10" electric fans in the bulge in bonnet above supercharger to suck as much heat out as possible when going slow off road. when on road & fans off they will still vent around blades.

tomorrows job swap sump pan & pick up etc to rear sump from a T100. hopefully reasonably simple.... :? :roll:


I wouldnt stress to much about the heat from the supercharger, unless you were having overheating issues before hand.
When I supercharged mine it made no difference at all to how hot it runs offroad.
As long as you have a good radiator I doubt you would have any issues

User avatar
mudsurfv6
Hard Yaka
Posts: 631
Joined: Fri May 23, 2014 6:29 pm
Location: pahiatua

Re: 96 v6 surf

Postby mudsurfv6 » Sat Dec 26, 2015 10:04 am

Madaz wrote:I wouldnt stress to much about the heat from the supercharger, unless you were having overheating issues before hand.


it has got hot a couple of times but 1st was jammed thermostat, and 2nd was viscous fan stopped working. had to drill 2 holes through hub & bolt solid because we were in middle of nowhere, have replaced hub but hasn't been drivable since.

otherwise it has always been fine, even when towing.

just thought better safe than sorry.
1996 vzn185 surf, TRD supercharger, SAS, 35s, 4" lift, 2 lockers, ute chopped + more happening. Andrew 0272226292.

Return to “Projects / Mod's”

Who is online

Users browsing this forum: No registered users and 1 guest
