autogage egt wiring

[likemagic]

I got a autogage egt 60mm stepper motor gauge for my kzn185, finial got to rip off the egr valve etc and fitting the gauge to find I lost the instructions.

I need to know what the red, black, white, and orange wire are for.

Thanks
Maurice

ps it is hard to pull the egr off with the engine in (hint: remove the solenoid valve under the egr valve first)

[kbushnz]

Try this (educated guess)
These two are logical
Red Batt +
Black Batt -
Now these two could be either way...
Orange Backlight in gauge
White EGT probe

or email
http://www.autogauge.com.my/

[likemagic]

Got it sorted after trying a couple of options, red and white power, orange lights, black earth.

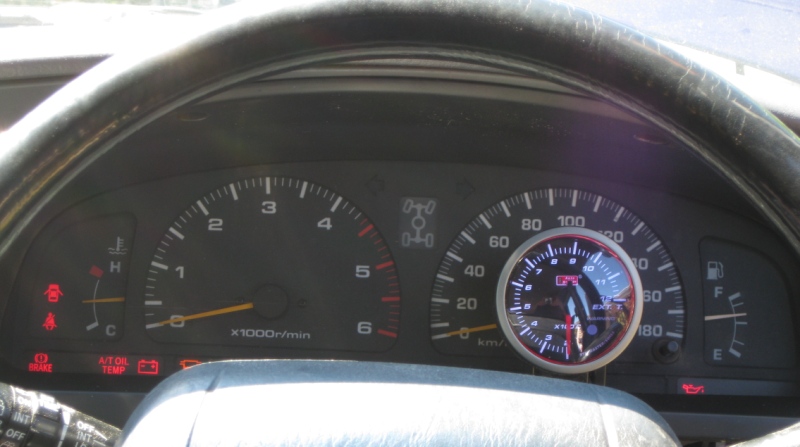

installed, upside no warning lights blocked - will not attract attention, down side, odometer and trip meter blocked

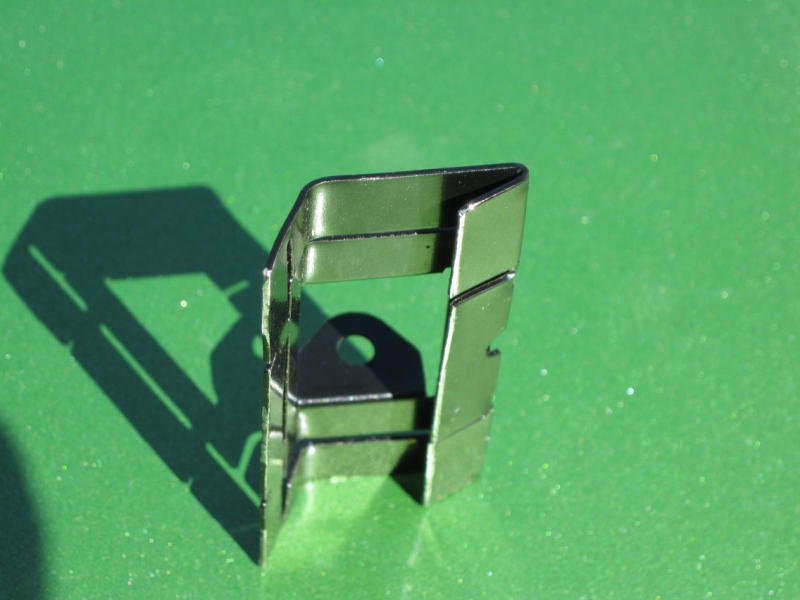

egt bracket shaped and trimmed

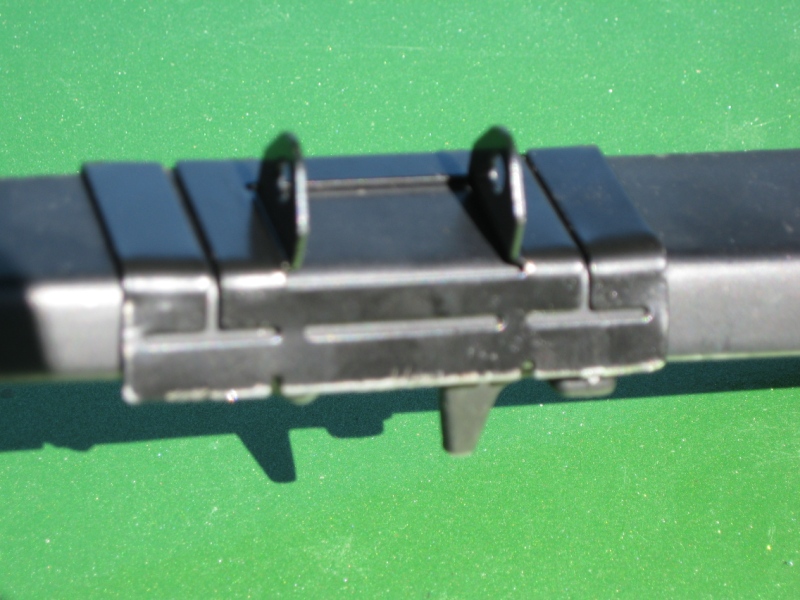

egt bracket mounted

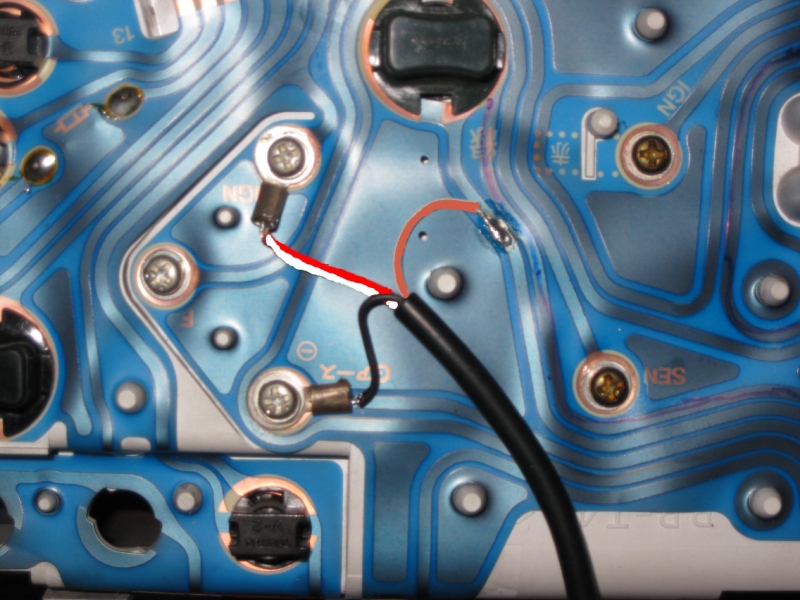

egt wiring on kzn185, orange wire tapped in to dash lights
