Nissan safari , TRUNDLES LTD Promo truck

[Trundle]

So i have had a new body that i picked up for 100 buks as my black truck is fecked even more so knowing i had another body , so went out wilsons the other week and fecked ever panel on it
Trying to drive through dense bush up rivers etc
all that fun stuff ,
I took some pics of the progress today but so far
we have spent over 50 hours insuring it is completely rust free,
Remove the body from the chassie stitched a new front end on it , remove all the body to floor/sill mounts , inner sills and all rust prone areas , repairs to near the fire walls where they all go , removed the roof (they all rust from the inside of the roof out ,
Finally this weeken i spent all day removing the sound proofing , and just started by marking and cutting the rear quarters ,
over the next few weeks i will bend up a 44mm half cage (Using my pro tools 105 bender ) , then filling any unneeded fire wall holes , then to sand blast and get my good mate steve from STEVEN SOLE CUSTOMS to paint it ,
The truck the body is going on currently has the following ,
Tough dog , gearbox spacers , castor corection , 45mm bore adjustable shocks , rtc damper , adjustable panhard rods ,
35" simexs , avm heavy duty hubs , garrett axt turbo kit , modied injector pump running 25psi boost , quarter chop , 2" body lift,
,I have all new brakes ,rotors pistons , wheel bearings , hub swivel kits , to fit and another chassie as i have snapped mine in the rear end , i am also going to brace up the front diff and chassie , change the fuel tank etc , as i am well renown for being reasonably hard on gear!!!!

[Trundle]

Currently working on shrinking the pic file size so i can post them , im not the goods on computers

[Trundle]

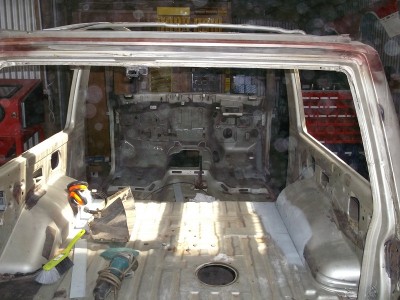

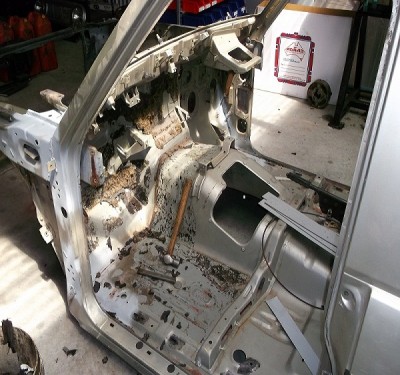

The begining of the sound chipping ,
(the driy ice shop is shut on sundays ,

[Trundle]

Nek minit / half day

[Trundle]

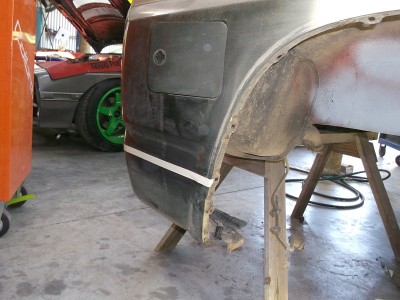

marking up the rear quarters

[Trundle]

cutting off snip snip !!

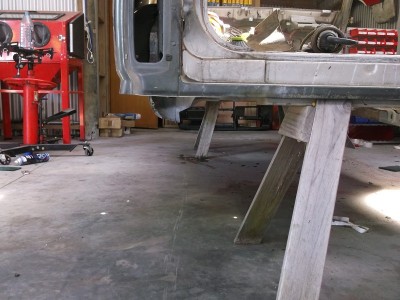

I love how woth of my hoists are being used by mates and im groveling round under saw horses ,
Sigh ,

[Trundle]

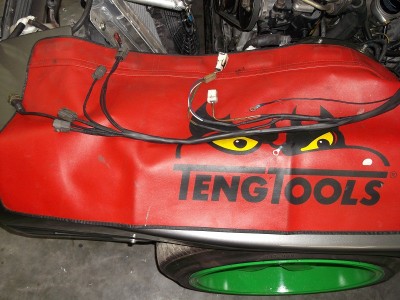

Mondays back so i had to get back to all of the customers cars , here is a microtec ecu loom i have almost completed for a 13bt rx7 race car ,
Much better than chipping on sound proofing in 34 degree heat ,

[Trundle]

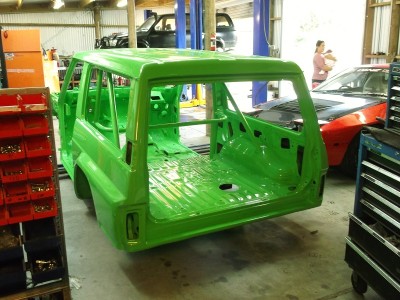

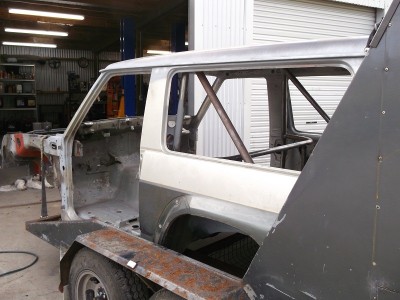

So we made new gutters , banged a new roof on , fixed every known rust place on these salt buckets and also threw in a 44mm ewt half cage to mount the harnesses on then dropped it off at Steven Sole Customs for some Kawasaki Green !!!

[Trundle]

And in the last few months we have done many a bar , exhaust etc etc , heres some picks

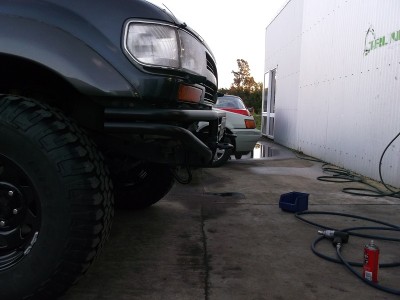

First is a 80series road truck tig welded and and powder coated ,

[Trundle]

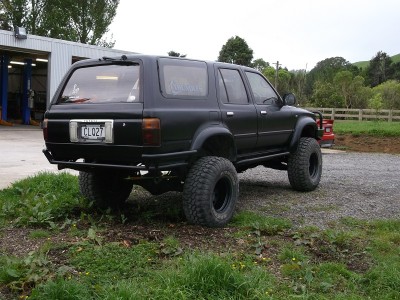

Heres a surf i modded the front bar for the winch , Custom made the rock sliders and rear bar , all tig welded and removeable , powdercoated etc ,

[Trundle]

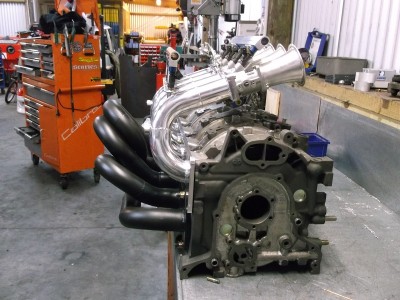

We make lots of manifolds , exhaust etc for those of you that need truck work in Taranaki we also stock a huge range of lift kits light bars winches etc , Heres some manifolds we made for my quad rotor pp engine

[Trundle]

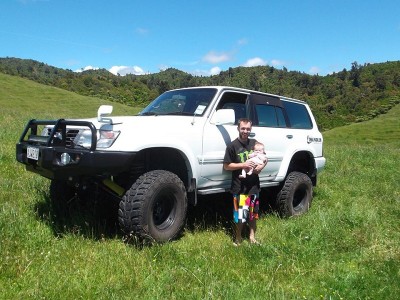

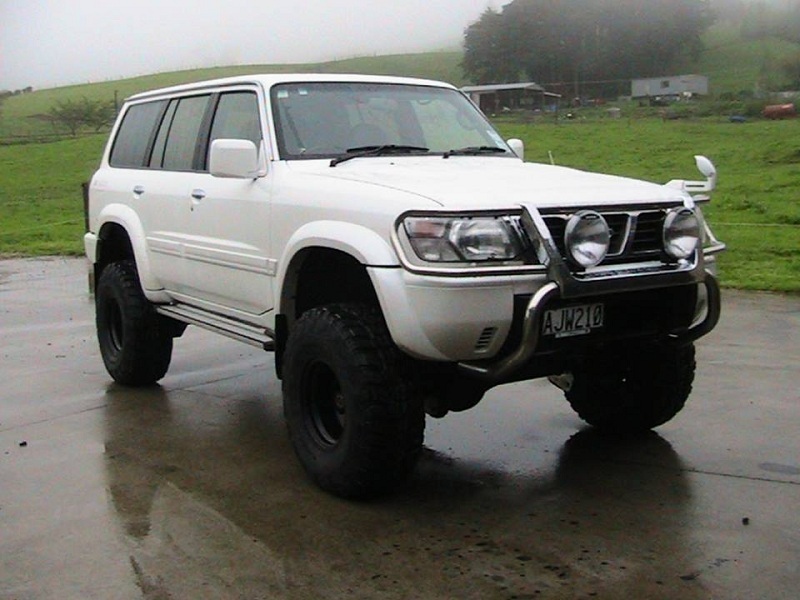

This is our new Gu we replaced the gq with ,
Just installed one of our Tough Dog 6" lifts with our Trundles Automotive swaybar extension , Trundles Radius arm spacers and prop valve spacers , Just Waiting on the airbag approved front bar so The mrs can ram hondas if they get in the way

[Trundle]

Here are the picks of the new roof fitted , new gutters my neighbor made up on his glorious folders , and all the other million new parts complete new front off another truck etc ,
The truck owes us a bit more than the 100 buks i paid for it now , sighhhhhhhhhhhhhhhhhhhhhh

[Trundle]

So it only took two trips and my mate rolled the number two truck so figured may as well fit the decent one !

[Trundle]

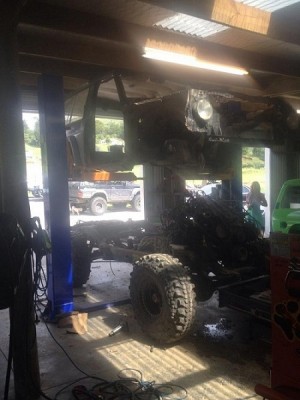

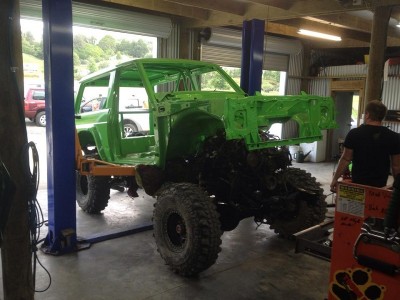

Reftting new body , Turbo is a holset rs , tial 44mm external , merge collected manifold , modded pump , 100x600x300 fmic , H/d clutch , billet hubs , 45mm big bore internal stopped tough dogs ,rs drag and tie rod links , bead locks , simexs , adjustable panhards , rtc damper ,

[Mattman]

Awesome work man.

[Jay]

Very cool... love Kawasaki green!

Jay

[Trundle]

Did a few more mods on the white truck to fitting one of the bumpers and light bars that we stock and am training my daughter to offroad , (she is only 5 months not sure if she understands yet , ?)

[Trundle]

Almost there , Just needs an exo cage , front braced diff and diff lock fitting and the rear lower extended arms and a few other minors ,
I have used parts from 15 different trucks so far to build it , Hopefully i can do more than two trips without rolling it this time , lol lol

[Trundle]

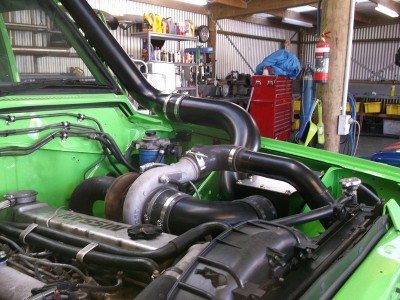

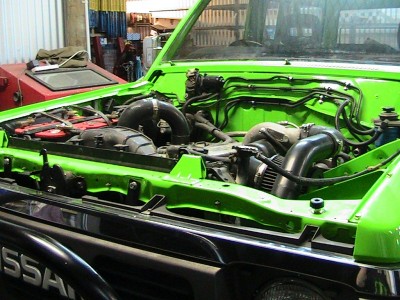

another pic bit averige quality but shows turbo , external w-gate , twin dry cells , FMIC

[Trundle]

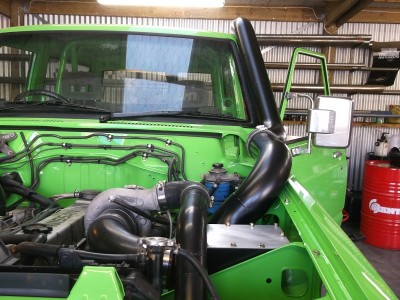

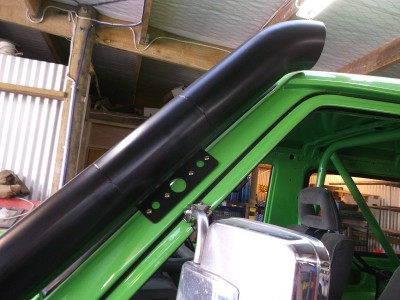

Just finished the snorkel off doom 4" i tig welded up all the box etc and ha the whole lot powdercoated ,
Truck also went through cert etc , Just need to do the inlet manifold , build a big pump and do the injectors , I also and going to fit one of our new genuine rocker shafts we stock and reface the rockers ,
Hoping to get above 200 + rwkw

[Trundle]

Another pick of the box etc

[Trundle]

Doesnt look that big but its 4"!!!

[tomsoffroad]

Goods good. Very clean and tidy

[4WDbits]

Just finished the snorkel off doom 4" i tig welded up all the box etc and ha the whole lot powdercoated ,
Truck also went through cert etc , Just need to do the inlet manifold , build a big pump and do the injectors , I also and going to fit one of our new genuine rocker shafts we stock and reface the rockers ,
Hoping to get above 200 + rwkw

Do you have any trouble with rain water getting into the air box?
Our snorkel is similar and has a water drain part way along, but when racing in anything more than light rain we end up with a lot of water in the air box. We're still looking for a good solution.

[Trundle]

5 psi more boost and call it water injection ???hahahah ,
I may have to get one of those rubber dongles our of factory airbox that looks like a duck beak maybe , Either that or some kind of stocking and a zip tie !!!

[greek_style]

hey mate how much are your light bars? and what kind are they?

cheers stoli

[Trundle]

Hi mate our light bars are ip68 Bridge lux usa made chip boards and leds , sliding base mounts ,
Prices are 12" 200 , 25" 300 35" 400 and 42" 500 , includes free freight 1 year warantee ,

[darinz]

Just finished the snorkel off doom 4" i tig welded up all the box etc and ha the whole lot powdercoated ,
Truck also went through cert etc , Just need to do the inlet manifold , build a big pump and do the injectors , I also and going to fit one of our new genuine rocker shafts we stock and reface the rockers ,
Hoping to get above 200 + rwkw

Do you have any trouble with rain water getting into the air box?
Our snorkel is similar and has a water drain part way along, but when racing in anything more than light rain we end up with a lot of water in the air box. We're still looking for a good solution.

You can buy duckbills from any marine shop. Just fit one in the bottom of the air box. That's what I do.
