My Toyota? Slow project....

[The WEHI]

So I've slowly been building this "thing" for awhile still a long time to go so thought id post some picture's
If you have any questions don't be scared to ask them I'll answer them if i can but i don't know what i am doing so someone else might answer it for me I just think,weld,cut,remove,cut and weld not allways in that order sometimes i cut things off i am not suppose to but there's no fun in getting it right first time that would be silly. ps lot's of pictures to catch up on.... don't be to harsh, not that i care i just don't want you talking to yourself....

Before on 31's

Before on 31's

Front bar 35's and some dent's

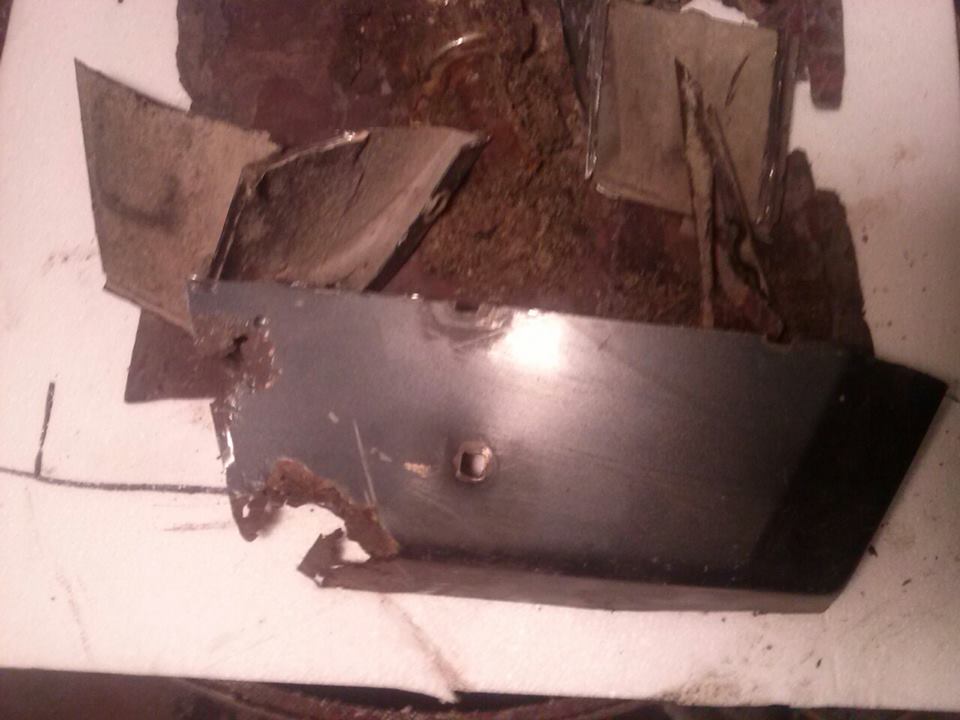

Found some rust on the floor

Fell off here

[The WEHI]

better fill in the hole

hole filled,

LOL opps

Done some more 4wding

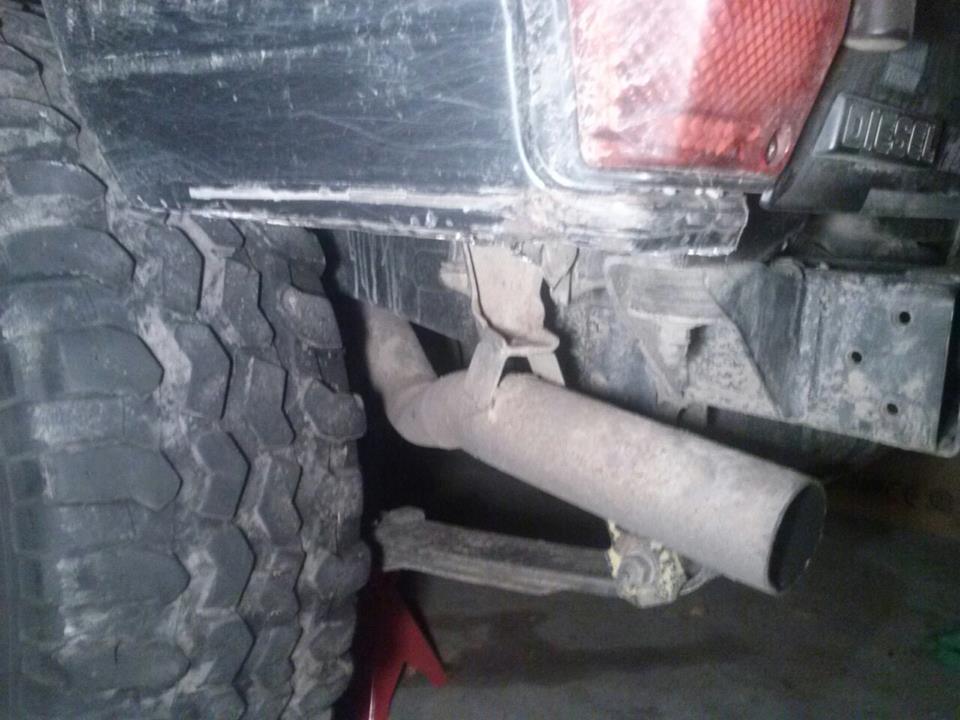

Made some corner bars

[Crash bandicoot]

please tell me those corner bars fold right around and bolt back onto the chassi behind the rear wheel...or the next bank you find , kiss your tail lights good bye...or just llose the upright piece, that's just going to be a lever to rip the rest off......just sayin.

[The WEHI]

this takes ages.......

better make sure they don't fall off

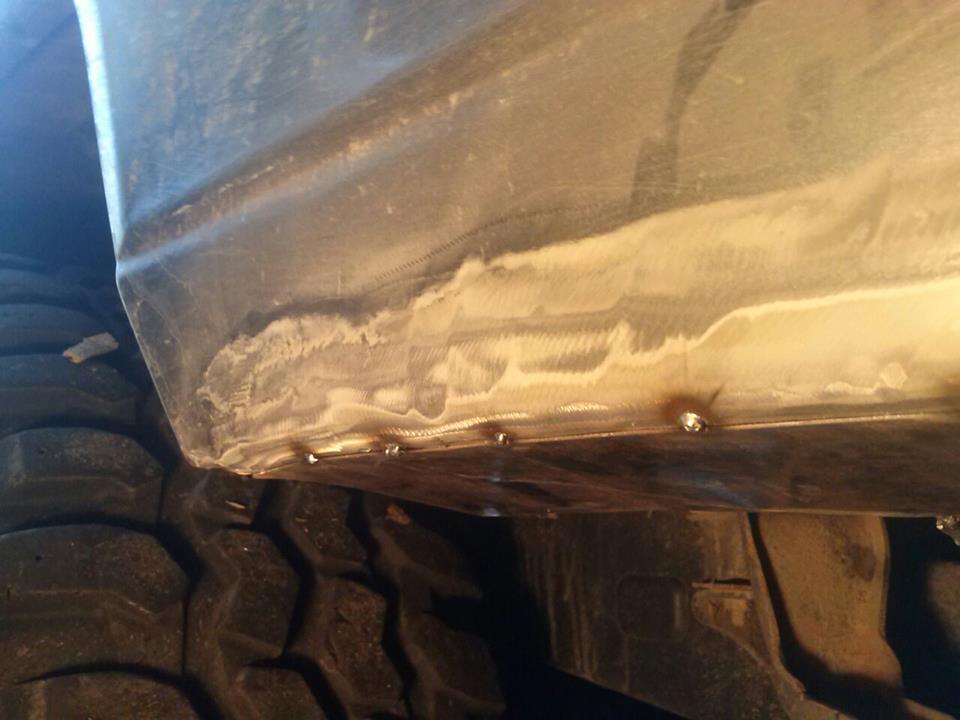

Made corner bars one piece added a brace,

Something tell's me hot bulbs don't like cold water midnight drive home with my high output headlight ;)

Runva EVO competition winch

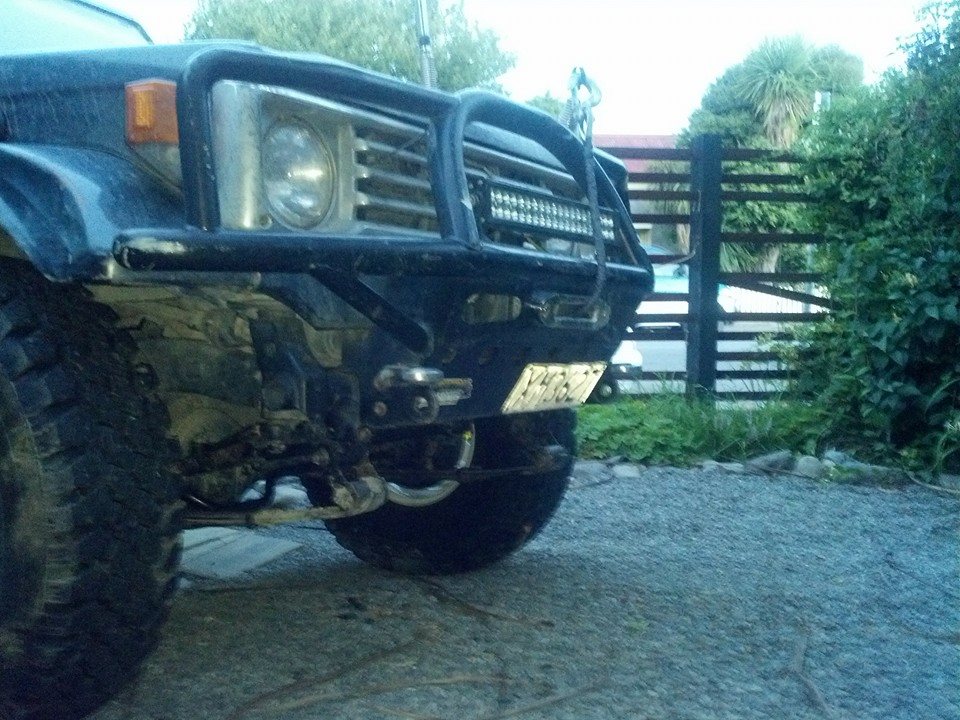

Light bar..... if only i had this earlier.....

[The WEHI]

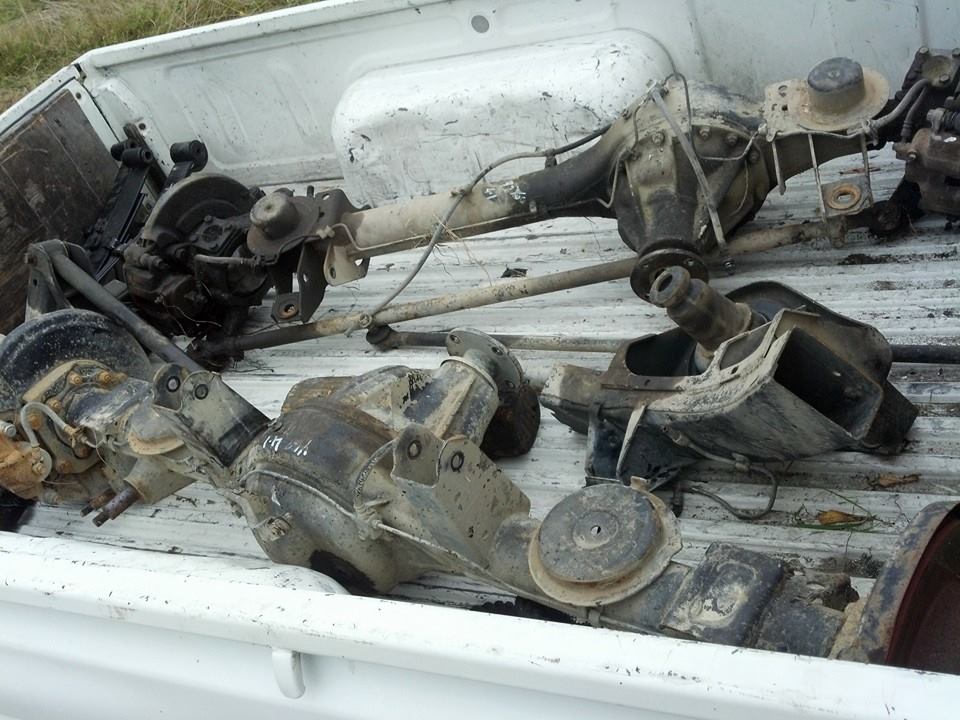

Safari axles >.>

Poor Door :(

Factory Cruiser flex on 35's (out flexed by a terrano Jamesoldboy show off)

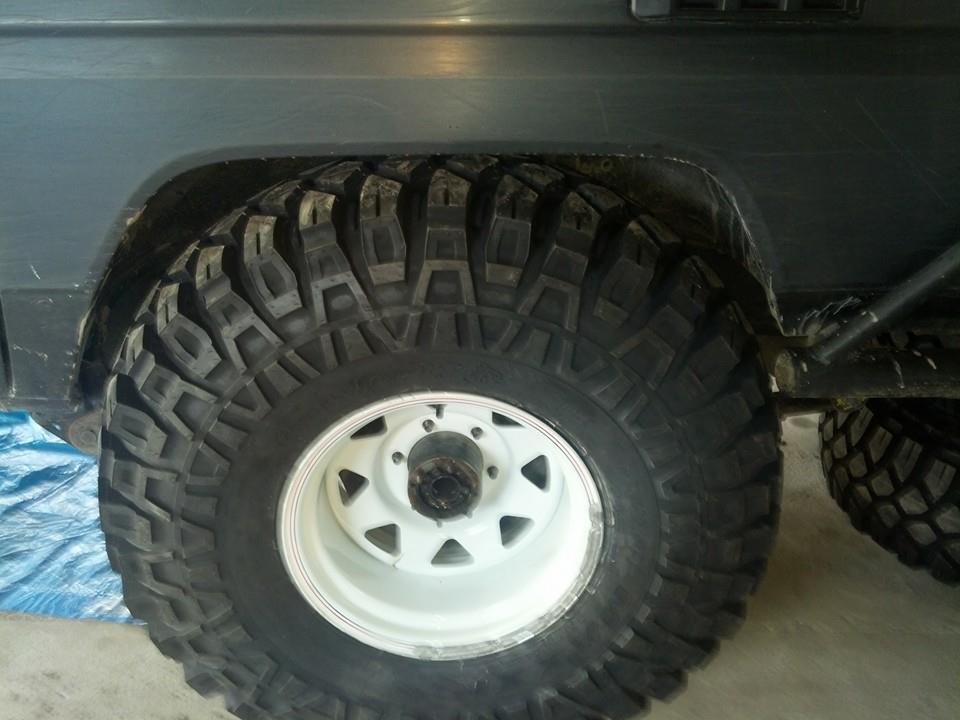

Got some 37's

factory height 37's? yeah nah.....

[The WEHI]

Of Course 37's fit with no lift ;)

Hmm whats going on here

Hover Trucks the way of the future,

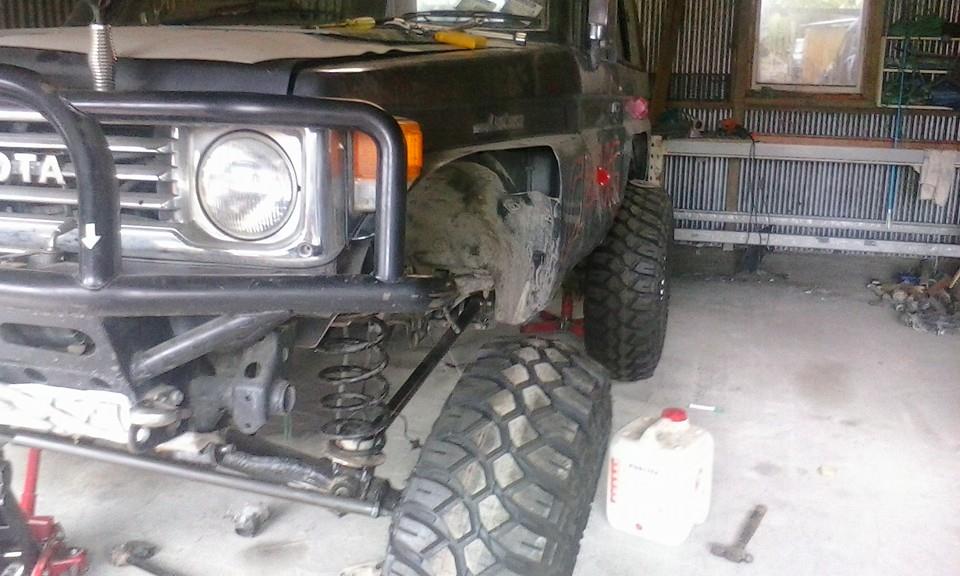

Gaurd chop? filler might be in the way....

Guess the filler has to go...... haha

[The WEHI]

mocking up rear 4 link.

Cycling rear 4 link

Quick flick with the grinder and the mounts fell off :O

made some more mounting objects with the hot glue gun and some metal coloured cardboard plenty strong enough for my 3 Link

Upper Chassis mount this is a very very very tight for space.

[The WEHI]

another angle of the madness....

Seems to cycle up all right

nothing really binds Happy so far....

Picture's

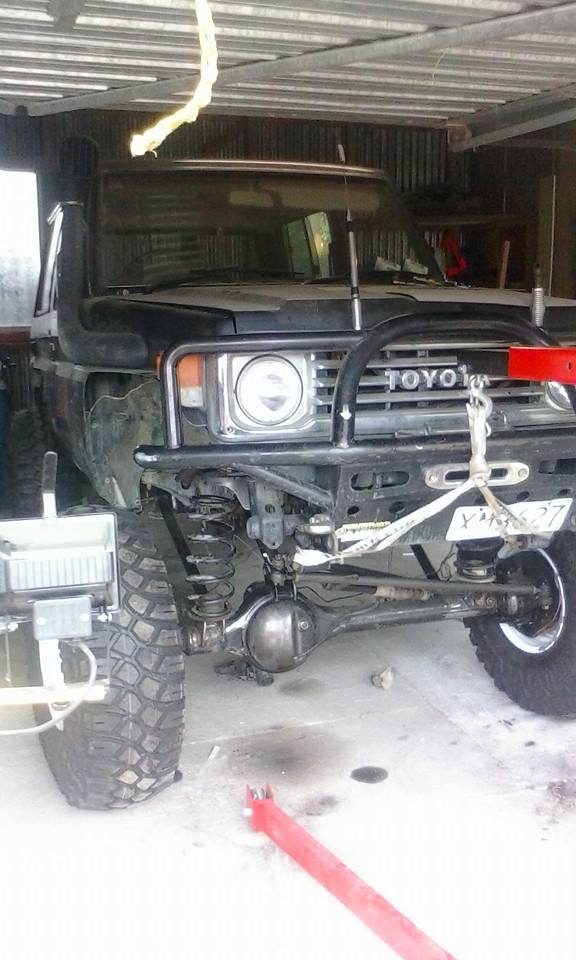

add Steering box/Drag link and Panhard.

[lax2wlg]

Very cool

[The WEHI]

Bounce holder devices

Some rubber doughnuts

And That is all for now folks Remember I have no idea what i'm doing how hard can it be? stick this there weld that here remove and repeat

[The WEHI]

please tell me those corner bars fold right around and bolt back onto the chassi behind the rear wheel...or the next bank you find , kiss your tail lights good bye...or just llose the upright piece, that's just going to be a lever to rip the rest off......just sayin.

It didnt stay like that long, it protected my existing dents and scratches well

[The WEHI]

Very cool

Thanks

[skidmark]

Impressive mate..wish I 3 linked my front when I built it,but don't want to change it now!

[The WEHI]

Impressive mate..wish I 3 linked my front when I built it,but don't want to change it now!

I know what you mean, my rear 4 links coming back out as i'm changing rear axles so i'm tossing up whether i change what i don't like now or just run it for awhile i haven't driven it in such a long time i just want it to go, Doesn't help the trucks an hour away either lol

P.s Your Truck looks bloody TOPS dude

[wyclef]

It looks real awesome. I have some issues with works like this; they make me question what I've really been doing with my life I guess I'll go cry in a corner now.

but yeah, good job *thumbs up*

[KIWI_TERRANO]

Toyota mate or nisota? Lol

Looking good wonder who will finish first either way i think a wheel is on the cards

[The WEHI]

It's going slightly more Toyota again safari rear is coming out 80 series going in dual front safari diff's with hydro rear crossed my mind briefly so did trying to find unimog axles

[The WEHI]

It looks real awesome. I have some issues with works like this; they make me question what I've really been doing with my life I guess I'll go cry in a corner now.

but yeah, good job *thumbs up*

I wish i never started it to be honest lol in all honesty the swb 70 series aren't the most ideal hard core rig short narrow and top heavy Its as low as it possibly could be as long as I could get it and seriously wide,

i hope I like it once it's finished or I'll probably strip it completely and build a landcruiser truggy

[kaney]

landcruiser truggy...now you have my interest!

good looking build though! well done

[wyclef]

It looks real awesome. I have some issues with works like this; they make me question what I've really been doing with my life I guess I'll go cry in a corner now.

but yeah, good job *thumbs up*

I wish i never started it to be honest lol in all honesty the swb 70 series aren't the most ideal hard core rig short narrow and top heavy Its as low as it possibly could be as long as I could get it and seriously wide,

i hope I like it once it's finished or I'll probably strip it completely and build a landcruiser truggy

lol don't be like that! but if ever you DO strip it, keep us posted hahaha

[The WEHI]

Just some more picture's forgot i toke them.

[The WEHI]

making room again love changing my mind

[The WEHI]

Got carried away making room

[skidmark]

Slip with the grinder?
What's the plan for the back now? Or wait and see?

[The WEHI]

Slip with the grinder?
What's the plan for the back now? Or wait and see?

Just 4link and pan hard in the rear cut the floor out because i needed room for coilovers and crossmembers the section i needed to cut out held the fuel tank and the front where a crossmember would be so just chopped the lot out

[The WEHI]

lower links on new rear diff

[The WEHI]

More pictures

[The WEHI]

[Checkerhead]

No triangulation? I assume you are running a panhard?

[The WEHI]

was triangulated with the safari rear, but now runs 80series lowers as uppers and custom lowers with panhard
