in my haste to cut the loom i didnt take note of what wires on the Reg go where
Any help would be awsome
Ln65 Hilux external Voltage regulator
-
HYBRID1337
- Winch master
- Posts: 14
- Joined: Tue Jun 02, 2015 5:46 pm
Ln65 Hilux external Voltage regulator
Hi all ive butcherd my looms to get rid of redundant wires an make it easier for trail repairs
in my haste to cut the loom i didnt take note of what wires on the Reg go where is my reg and my alt
Any help would be awsome
in my haste to cut the loom i didnt take note of what wires on the Reg go where is my reg and my alt
Any help would be awsome
-
evolution02
- Hard Yaka
- Posts: 181
- Joined: Tue Feb 19, 2008 9:27 pm
- Location: Timaru
Re: Ln65 Hilux external Voltage regulator
Alternator plug is Blue = neutral, Green = field & Black = earth

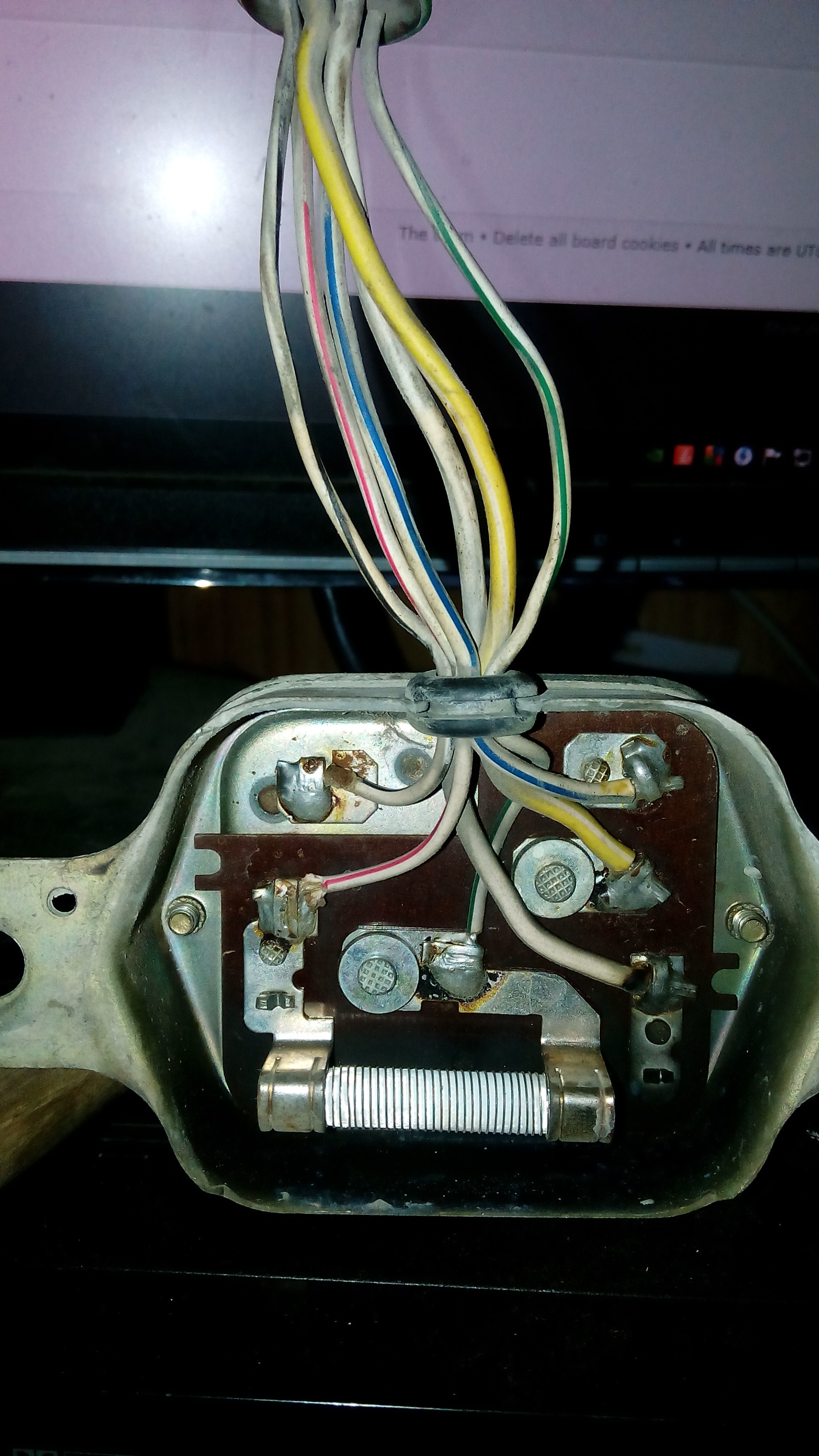

Then the regulator should be as pic attached. I believe pic is looking into diconnected regulator plug. Code isn't for wire colour but for its function i.e L is light, N is neutral etc
Then the regulator should be as pic attached. I believe pic is looking into diconnected regulator plug. Code isn't for wire colour but for its function i.e L is light, N is neutral etc
