praduck · Post by **praduck** » Fri Apr 13, 2012 8:49 pm

Hi all . so i have a prado LJ78 and have brought a aisin winch .only thing is i dont know alot about them or what they are like....and i dont have a wiring plan for the winch making it a bit harder to fit . any INFO would be great thanks

kbushnz · Post by **kbushnz** » Fri Apr 13, 2012 11:48 pm

Throw up a photo of it...
Depending which one it is it could be too small for the mighty Prado....

praduck · Post by **praduck** » Sun Apr 15, 2012 8:51 pm

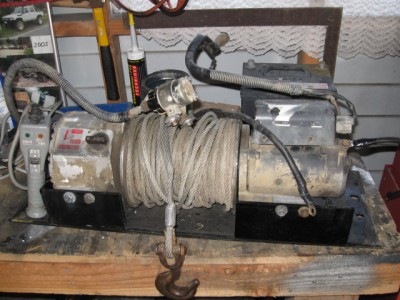

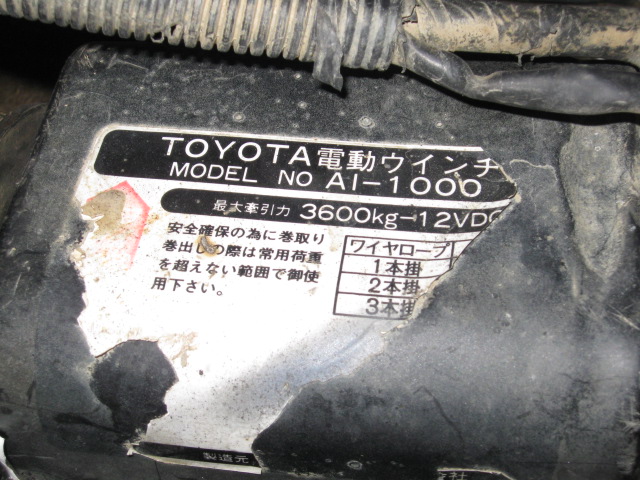

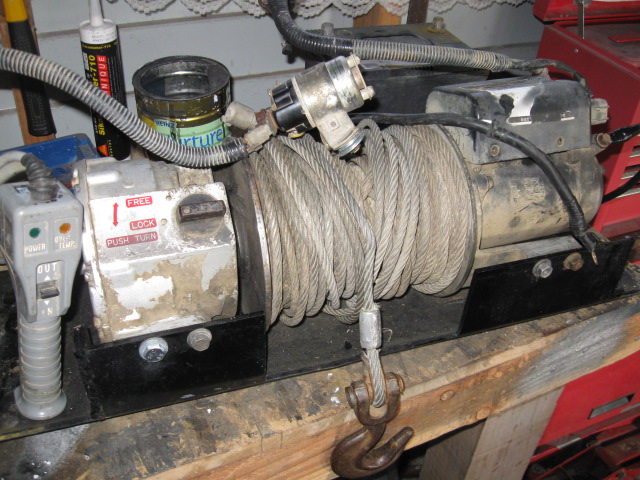

WELL THANKS .HERE ARE SOME PHOTOS.
ALSO SHOULD THE CABLE FEED OUT FROM THE TOP .
ANY INFO WOULD BE GREAT THANKS.........

kbushnz · Post by **kbushnz** » Sun Apr 15, 2012 9:43 pm

Looks like they were fitted as factory options to the Prado.. And possibly the 80 series.
May have to find a manual online with winch info...
I have some manuals on my other pc which I will have a look at later in the week......

NJV6 · Post by **NJV6** » Mon Apr 16, 2012 9:56 am

Yes the cable goes on on the top which is the opposite to most winches.

Winch should be plenty strong enough, they a pretty good and well made unit. Like all AISIN stuff, it is nicely made. They run ATF in their winch gearboxes.

kbushnz · Post by **kbushnz** » Mon Apr 16, 2012 4:31 pm

PM me your email and I will send you a section of the 80 series manual (pdf) which covers the electric winch and I will also try and pull out the electrical wiring diagram section for it also.....

Rural53 · Post by **Rural53** » Mon Apr 16, 2012 7:19 pm

What ever you do don't flick the winch from in to out, or vise versa, without letting the motor stop fully, otherwise you will break the input shaft. Ask me how I know? Good news is any parts required are available from Toyota. Based on the free spool lever this is a later model one.

praduck · Post by **praduck** » Mon Apr 16, 2012 9:20 pm

WELL GUYS THANKS VERY MUCH FOR THE INFO

HAVE TAKEN IT ALL ON BOARD....

adimw2 · Post by **adimw2** » Mon Apr 16, 2012 9:47 pm

this http://www.offroadexpress.co.nz/Forums/viewtopic.php?f=6&t=15868 may also be of use

praduck · Post by **praduck** » Tue Apr 17, 2012 7:33 pm

Hi all .. I would like to say thanks.. as i have been able to use all of your info and can now report back that the winch is on my garage bench and is working

kbushnz · Post by **kbushnz** » Tue Apr 17, 2012 8:40 pm

Sweet now its time to fit it and try it on the trails.... :mrgreen:

praduck · Post by **praduck** » Sun Apr 22, 2012 8:23 pm

Ok guys .spent the day remounting winch on to the truck ..got that done ...
Then started the rewire -- got that done so it would work off the remote
(in cab still to wire up) ..
Now heres the thing ---winch only works going in ..press remote to go out and nothing .makes funny noise and green light on remote dimes out...
Have i done something wrong as it was working on the garage bench..
Any thoughts

kbushnz · Post by **kbushnz** » Mon Apr 23, 2012 8:26 am

Check your wiring again...
I had a bad earth on my Warn....
The solenoids used the frame as an earth.... Newer ones have their own earth...

Sorry cant be of any more help......

praduck · Post by **praduck** » Mon Apr 23, 2012 8:50 pm

thanks will do that on my next day off :mrgreen:

pressy · Post by **pressy** » Mon Apr 23, 2012 9:18 pm

hi dude,

i had the same problem when i was stuck the other day, and have since found the drum side was bent outwards and was jamming under load to the side of the motor housing, have yet to fit back together to test. just food for thought.

cheers
pressy

praduck · Post by **praduck** » Wed Apr 25, 2012 6:52 pm

thanks man

. am hopping to get sunday off work to try and sort this out..

praduck · Post by **praduck** » Sun Apr 29, 2012 8:54 pm

was able to get the day off work ..
winch was main job for the day and was able to get it to work but only in --noy out ...when u press it out a solenoid makes funny sound and klicks.. i have replaced all the earth leads and cleaned up all the other lead ends..

mudlva · Post by **mudlva** » Mon Apr 30, 2012 5:13 pm

Swap the cabling over on the solanoids if problems persists with the same solanoid then its stufffed and needs replacing

praduck · Post by **praduck** » Mon Apr 30, 2012 8:22 pm

thanks will try that..
also can i remount the solanoids in the engine bay, or is this not good for the winch.

wjw · Post by **wjw** » Tue May 01, 2012 7:36 am

praduck wrote:thanks will try that..
also can i remount the solanoids in the engine bay, or is this not good for the winch.

It will be ok, providing you use decent sized cables.

praduck · Post by **praduck** » Sat Jun 16, 2012 9:36 am

well all . up date on winch . it is at the auto sparky as it has a short some were in the motor .The sparky picked the short up as it made a high pitch noise , he said that sounds like its to ground when you try to winch out ..Hope its a easy / cheep ish fix . :wink:

asutherland · Post by **asutherland** » Thu Sep 06, 2012 12:20 pm

Thought you may find this useful, I am rebuilding my Aisin winch right now.
http://forum.ih8mud.com/80-series-tech/ ... build.html

Also, here is a link to download the Aisin winch manual from Toyota, full breakdown and build details/specs. https://dl.dropbox.com/u/1472663/Files/ ... _winch.pdf

And here is my write-up on getting the Aisin winch to work with a standard Warn style controller, for those of us who got the winch with no factory remote. http://forum.ih8mud.com/80-series-tech/ ... oller.html

Andrew

mudlva · Post by **mudlva** » Thu Sep 06, 2012 10:10 pm

maaaate thats real handy

cheers

asutherland · Post by **asutherland** » Fri Sep 07, 2012 12:08 pm

mudlva wrote:maaaate thats real handy

cheers

No prob, cheers from Canada!

praduck · Post by **praduck** » Mon Oct 08, 2012 9:25 pm

Cheers for the info .great stuff
