Can anyone identify this Surf or Hilux Gearbox

[hosehustler]

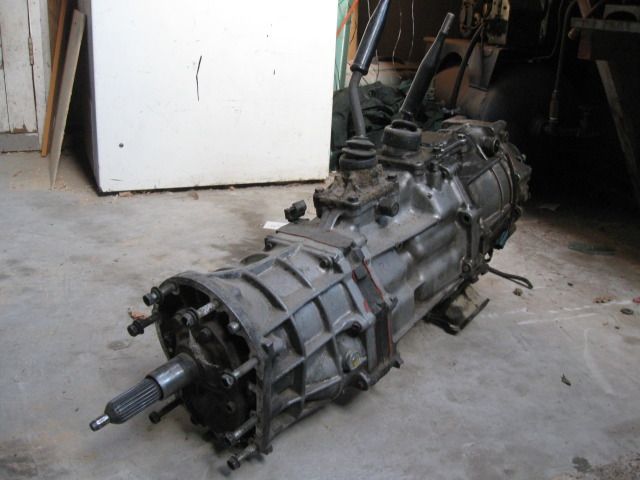

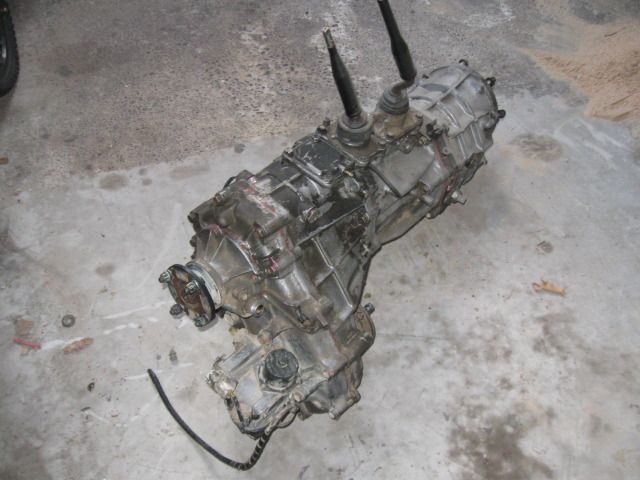

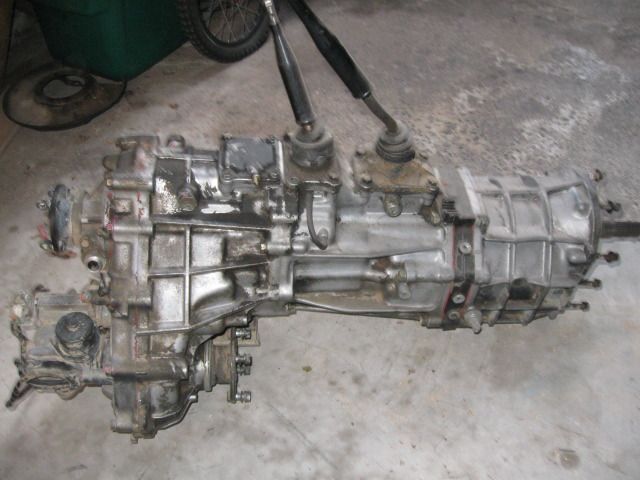

I got this gearbox when I purchased lots of other parts.
I have only dabbled with G52's and W56's so know all about them
But this isn't either could be from a surf or maybe a later hilux
Anyone know what it is for definates, and yes its for sale if anyone needs what the hell it is

[muddyhilux]

transfer case definitely looks to be off a r series but box looks like a the smaller g/w series,wierd

[hosehustler]

transfer case definitely looks to be off a r series but box looks like a the smaller g/w series,wierd

Exactly my thought's....good I'm not alone on the weirdness factor

[muddyhilux]

5 bolts means it's a chain driven case which all V6's had, manual and auto. As did the 4 cylinders with an auto transmission and the G58 5 speed trans (early 90's trucks/4Runners that came with the ADD front end)

just found this on IH8MUD.could be the answer

[SamLogan]

i will compare it to my stuffed r151 in the garage tomorrow. it looks like a r series. Really hard to confirm between a r150 and r151. I know the kzn130 manuals had a neutral switch on the drivers side of the box up by the bellhousing and they ran a r151. only other way is to pull them apart and count the teeth.

Sam

[Smurf]

Tim I had a look at a box I have on the floor in the shed, Same as yours and it's bolted to a 3ye from a YN130 2 door Surf.
Looks to be the same box in the 4 door YN130 i also have.
So according to the ID tag its a G52 box
I have a diesel bellhousing that will fit this also, if required by anyone
This the the tag out of the 4 door YN



Excuse the crap picture but this is mine.

[hosehustler]

Awesome, thanks for that
will chuck it on TM now but if anyone needs it give me a bell

[SamLogan]

yeah compared it to mine and the r series doesn't curve up where the bellhousing bolts up
