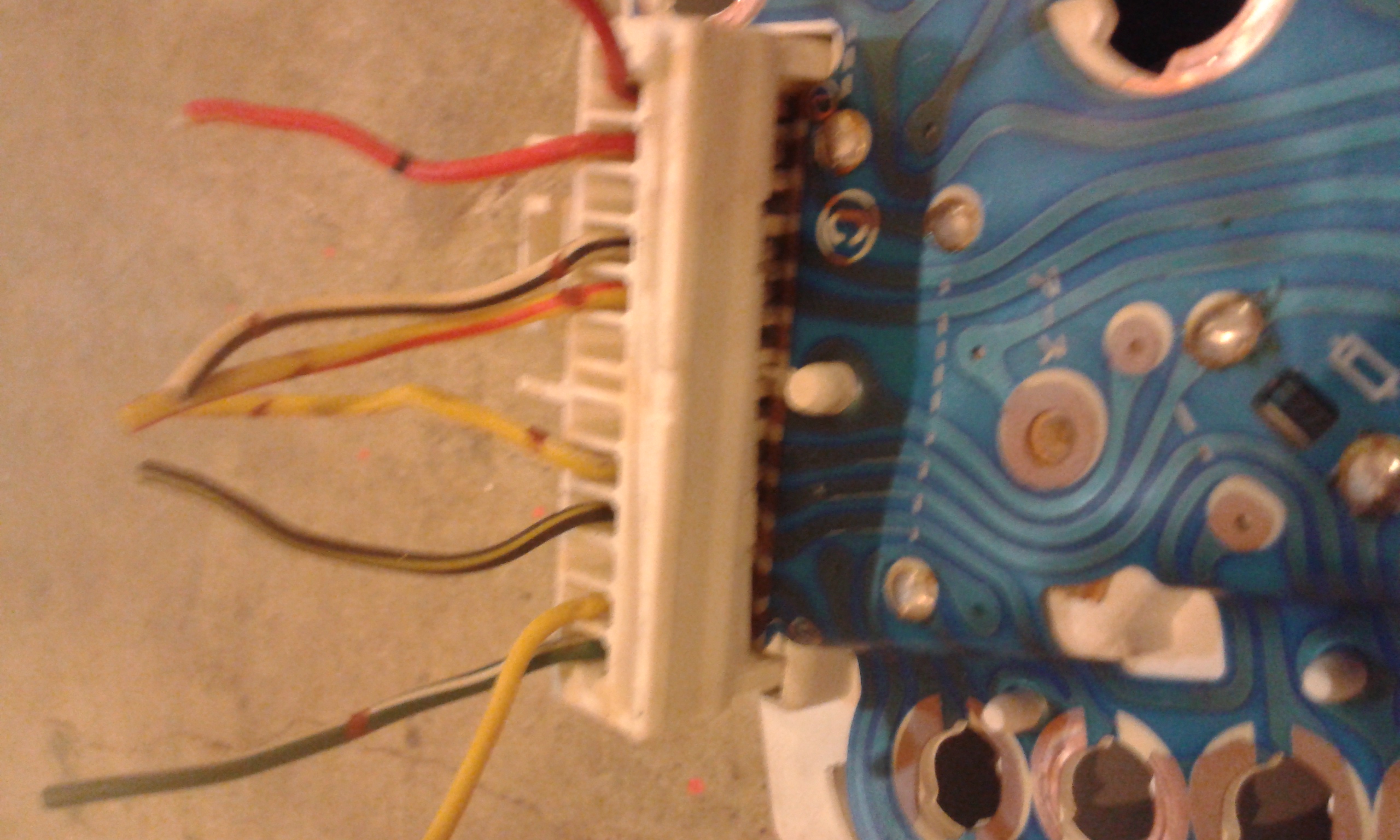

Im currently rewireing the 3.8 in my surf anybody got a wiring diagram or can tell me what this wire is (yellow and green)
Cheers

Posted: **Wed Aug 19, 2015 5:01 pm**

i think thats water temp. just not sure if my diagram is the exact same version as your surf.

Posted: **Wed Aug 19, 2015 5:13 pm**

Bugger it might be. Any idea on the colour of the alt charge light?

Posted: **Wed Aug 19, 2015 5:19 pm**

Im guessing its the yellow and black on the next plug

Posted: **Wed Aug 19, 2015 7:20 pm**

from my diagram, black/yellow and yellow. not sure which one is at the plug.

Posted: **Wed Aug 19, 2015 8:16 pm**

Ive got my wiring conversion stuff i've worked out for when i did my conversion somewhere ill look for it, where are you based ?

Posted: **Wed Aug 19, 2015 8:34 pm**

Cant find my book i worked out all the dash wiring conversions but if your dash wiring is the same as mine alt charge is Yellow w/White stripe with brown dots

: 4th wire from the left

Posted: **Wed Aug 19, 2015 9:52 pm**

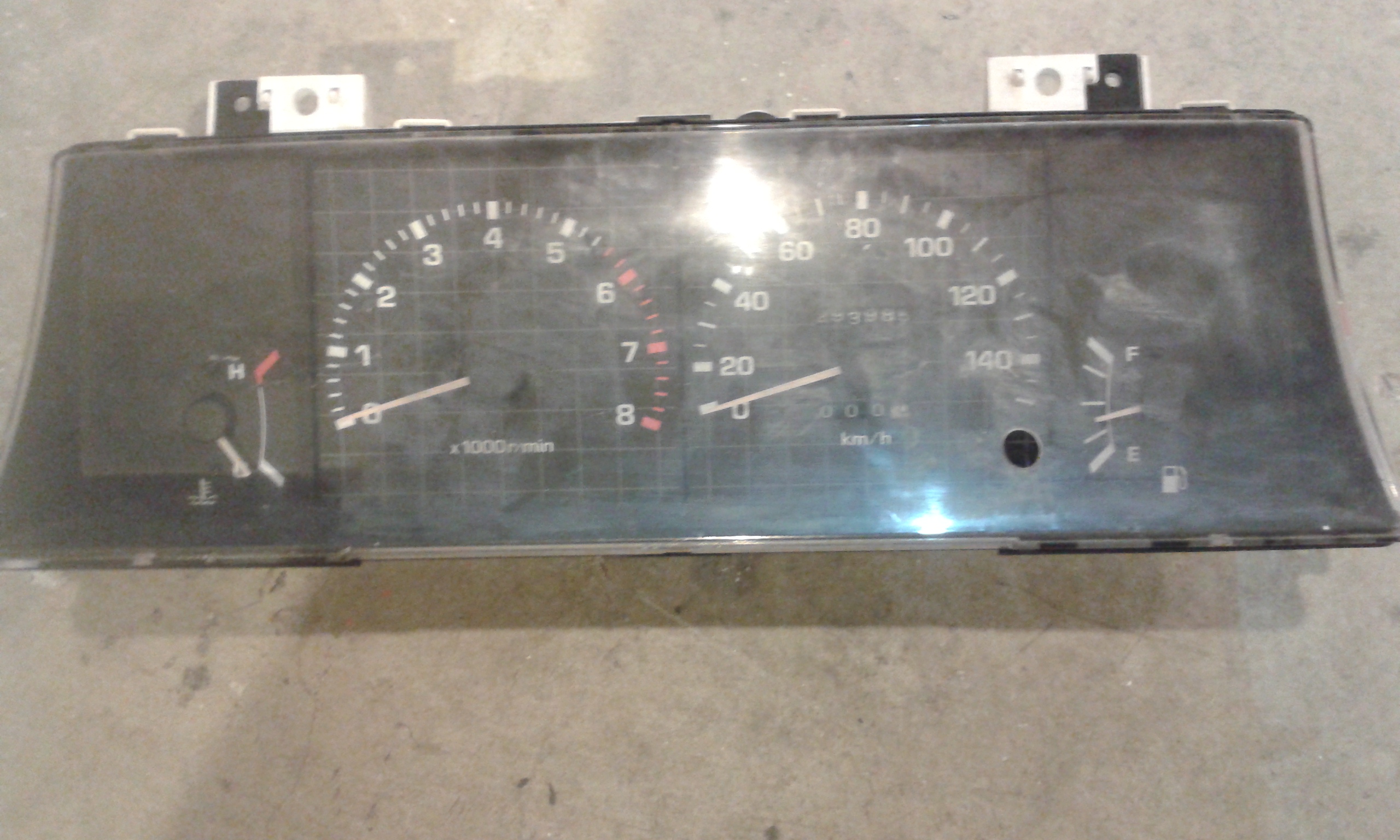

Cheers will have a look tomorrow. Mines the newer shape dash though.
