Fog & Spot light wiring

Garage talk. Anything from mounting a winch to water proofing the electrics.
Post Reply
User avatar
wjw
Hard Yaka
Posts: 3420
Joined: Thu Jan 15, 2004 12:00 pm
Location: Christchurch
Contact:

Fog & Spot light wiring

Post by wjw »

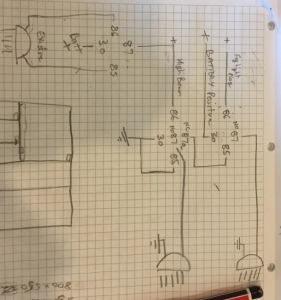

I drew up a wiring diagram for my new lights but forgot about the negative switching on the high beam:
The fog lights need to turn off when I turn on high beam. As you can see I have wired NC on the high beam relay to the earth side of the fog light relay.

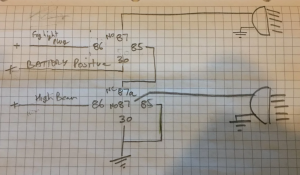

Right now I’m thinking easiest way to solve this is a third relay connected via the existing high beam:
Anyone got any better ideas?

Thanks,

Bill
-----------------------
Who knew Prados could fly?
