It Has begun... "Project Wombat"

[DieselBoy]

What??

Project Wombat??

Don't ask me, ask Satalite, she named it

The Plan in stages:

Ground up restoration of body and chassis with out going over the top, no point owning it if you don't wheel it!!

Wof and Reg

Engine rebuild

Roll bar (hoop and back stays)

3rd seat

Find a use for the PTO

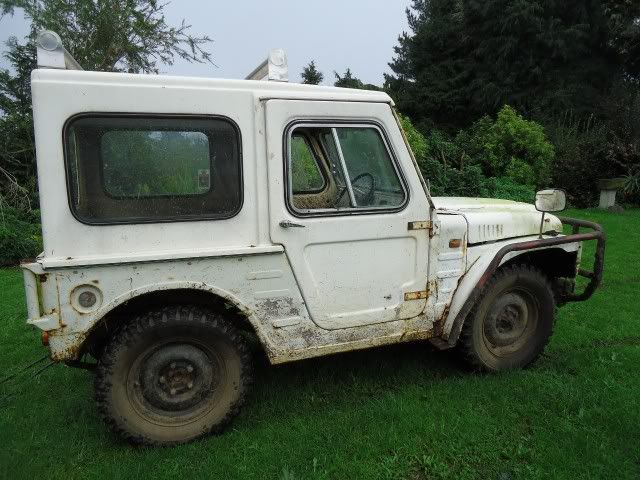

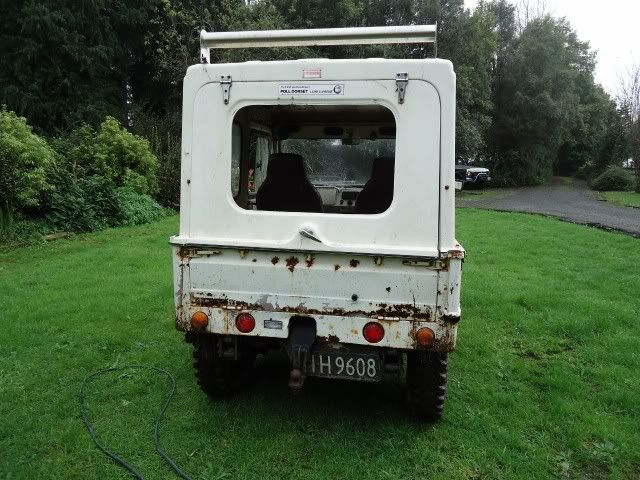

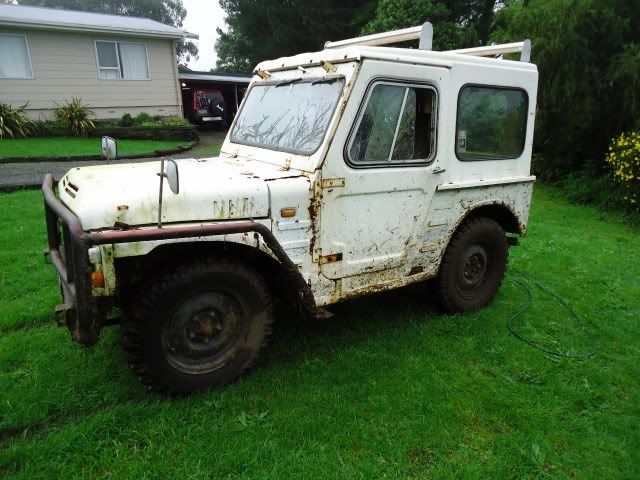

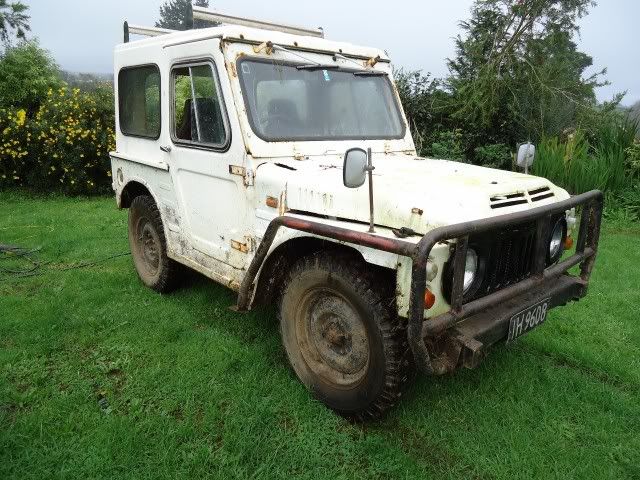

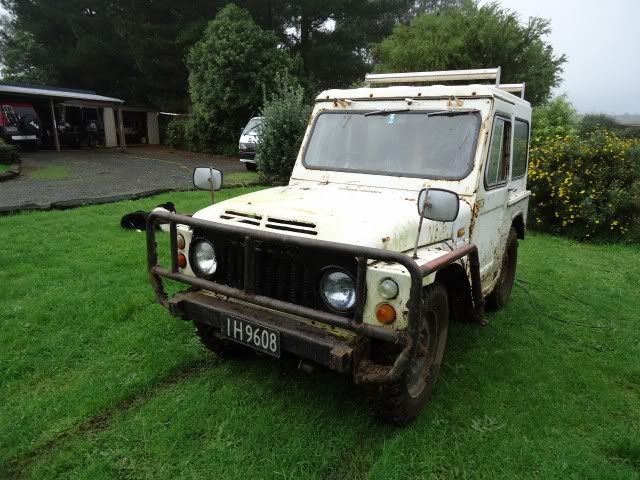

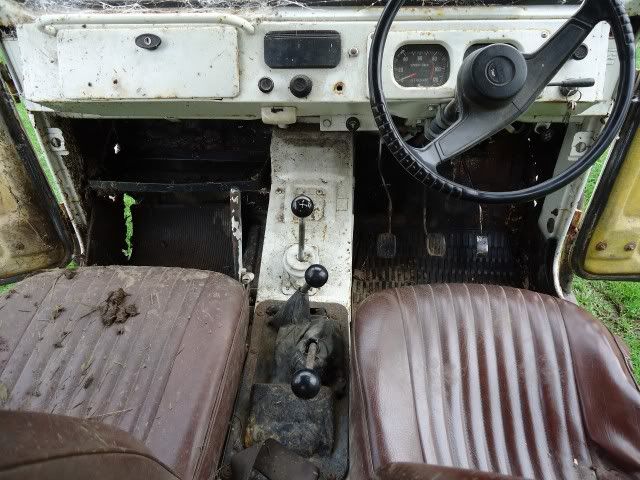

So this is what we are starting with:

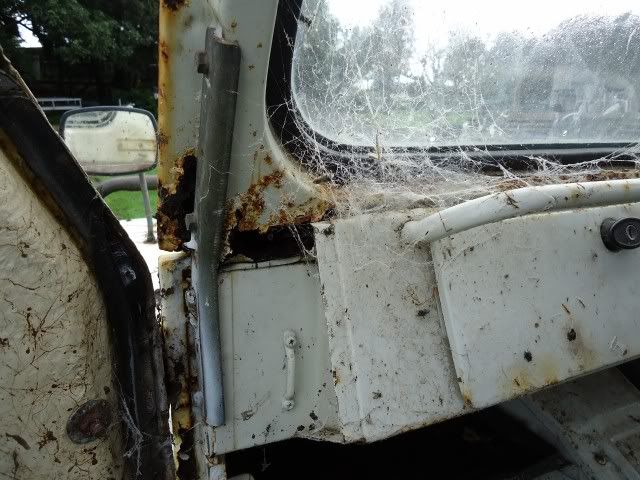

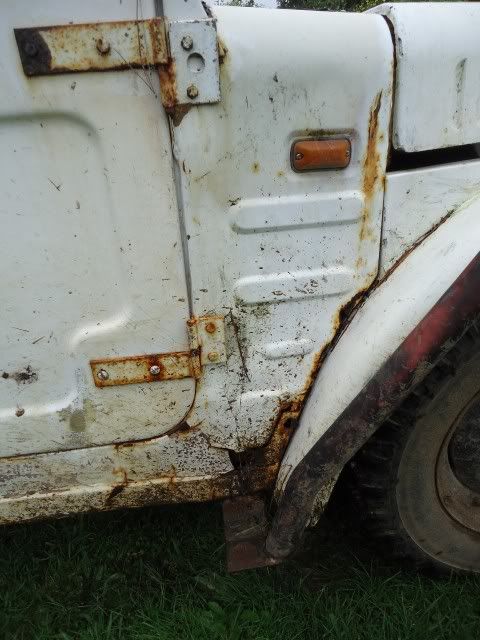

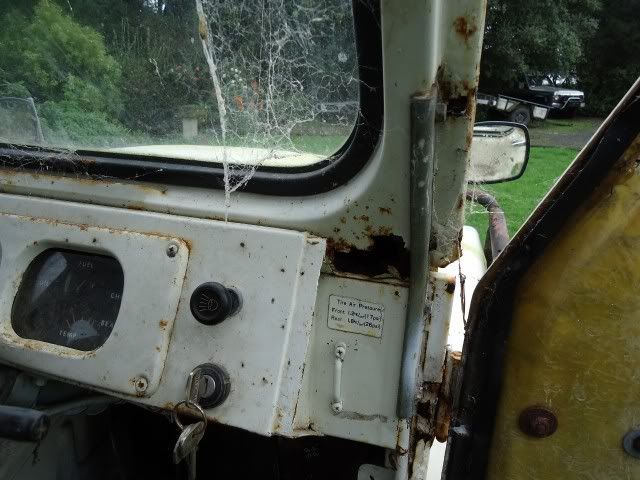

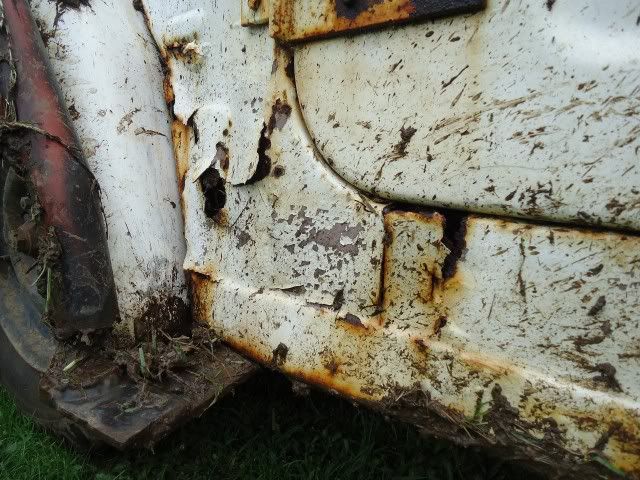

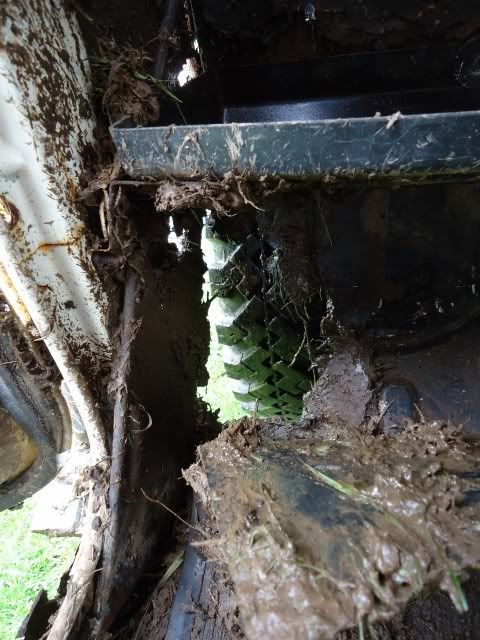

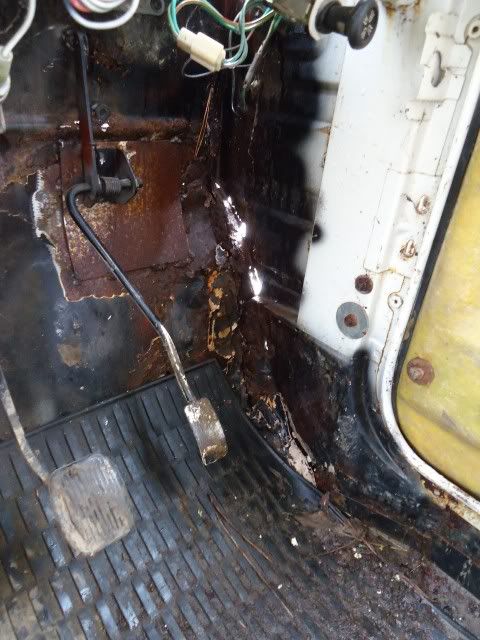

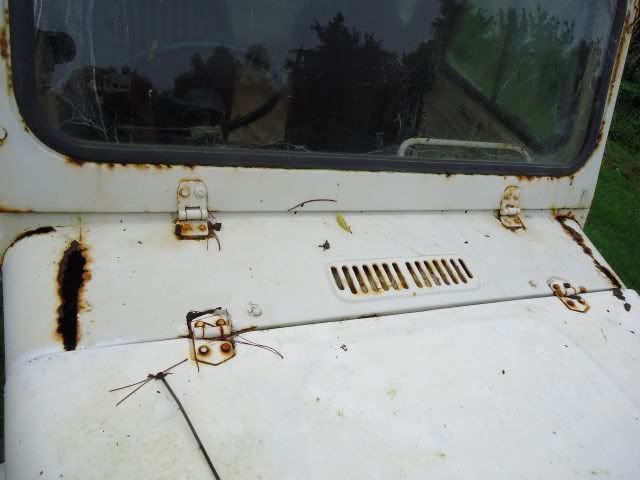

Did you know Suzuki's are Biodegradable??

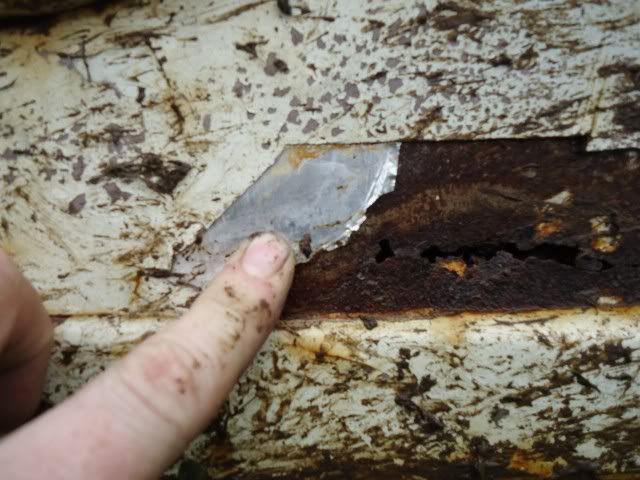

Don't believe me?? I'll show you:

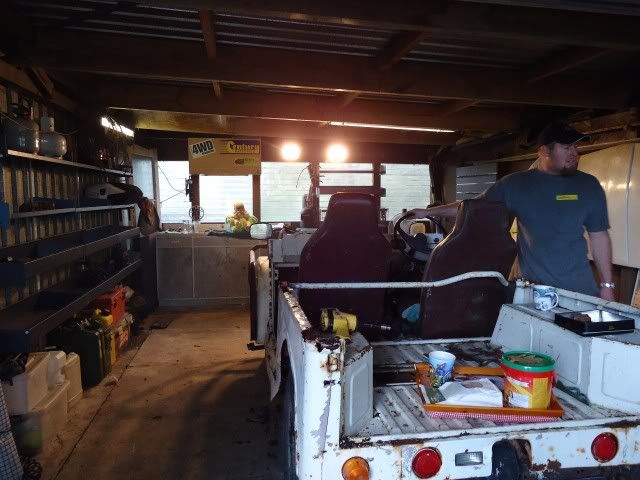

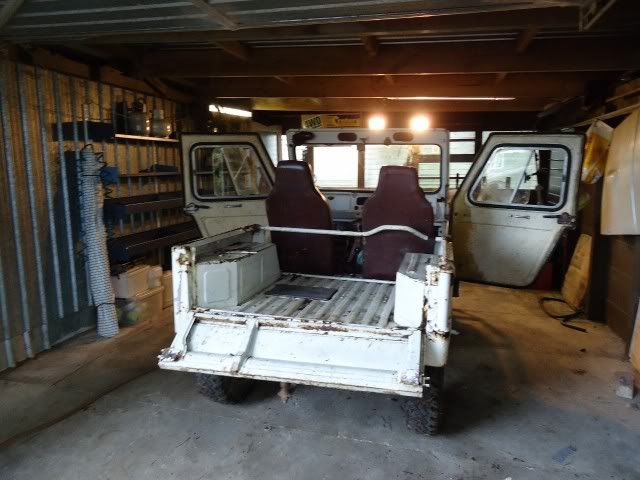

The work began at the weekend. The stripping has started:

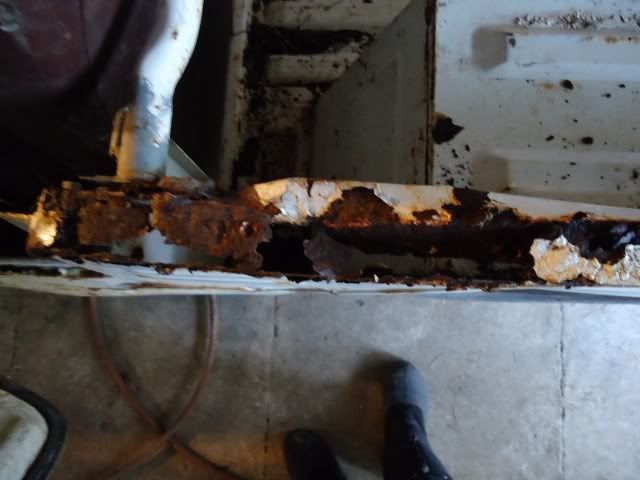

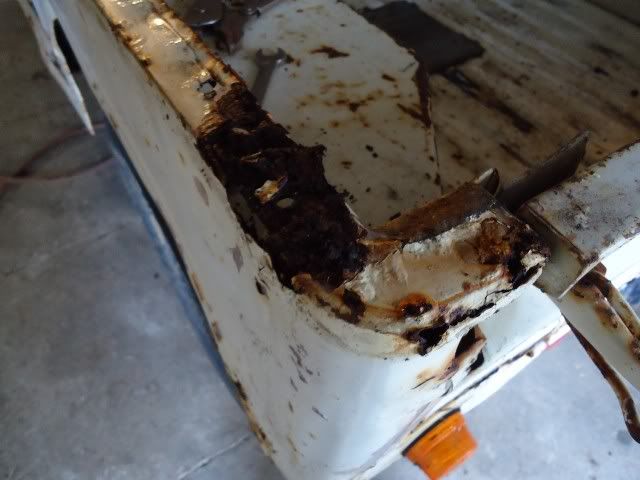

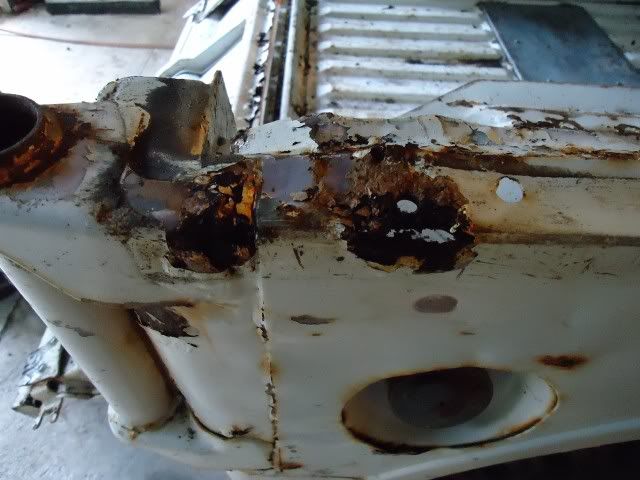

Some more bio degradation under the canopy:







I ran into a snag when I couldn't figure out how to disconnect the PTO shaft from the PTO box, as it runs through a hole in the body work. So I took some pictures of it in stead.

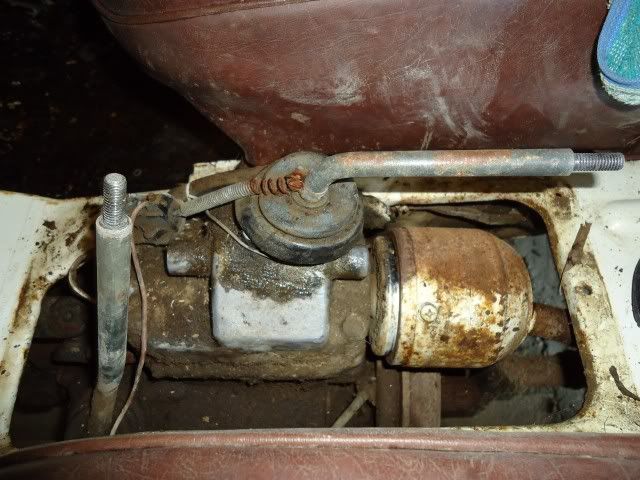

PTO Box on top of the T.Case:

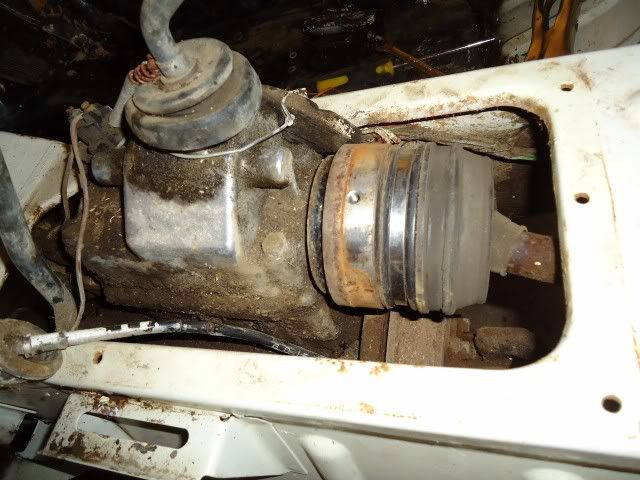

PTO with steel sheild removed showing CV joint and rubber boot still in serviceable condition at this end:

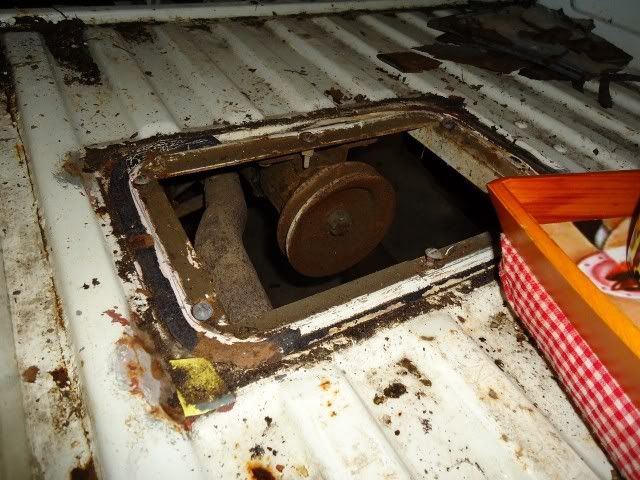

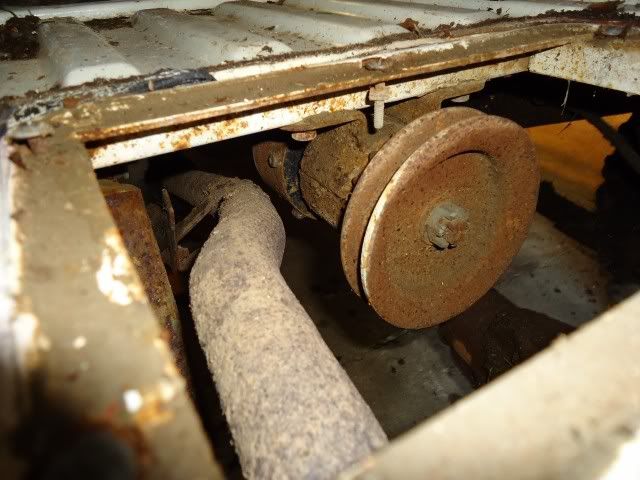

PTO drive end of the saft with V Belt pully





I reckon I could run a little GM power steering pump off it and power the smallest hydraulic winch I can get my hands on


Lots of hours ahead of me with this project

[NJV6]

A good keen man. If its like the others it'll turn out flash as!

[De-Ranged]

love it, you don't like easy do you....

Cheers Reece

[lilpigzuk]

Nice work, good to see your into it

What do you want me to buy for your next project

[Lynx]

Awesome, good luck, but knowing you, it will turn out mint.

Cheers Daniel

[skid]

is there gonna be anything left after a sandblast

and was that tray in the last shot for the tea and scones chap

[DieselBoy]

was that tray in the last shot for the tea and scones chap

Coffee and chocolate chippies my good man

[lincooln]

looks like a fun project.

[DaveM]

Going by the speed you seem to complete projects, I take it this will be done in say, 6 weeks?

[suzookyman]

good luck, im looking forward to this one.You really have your work cut out!

[ToYoda]

Literally alot of work "Cut...ing out"

[DieselBoy]

Going by the speed you seem to complete projects, I take it this will be done in say, 6 weeks?

I have set the goal post a bit higher this time, as I'm going to attempt to get it re-vinned

Thats gonna be a challenge and a half with this rusty old shitter

[wopass]

i thought the rego was still on hold?

[DieselBoy]

i thought the rego was still on hold?

Nah, unfortunately.

Still, its only $300 to re-vinn, and its been registered in NZ before, the rego just lapsed so no damage repair reports required. Plus its getting the LURVE anyway so it should be fairly straight forward.

As of a month or so ago, you can now keep the original black and white plates if they are in good condition

[lincooln]

Hey man, where did you get the price of $300 from for the re vin? I have been told to re-vin my R12 it would be like $1000 or more.

Just curious. Would like to save what I can.

oh and I also heard the guys out at sylvia park VTNZ are used to the older vehicles so are good for getting the older cars re-vinned.

Cheers
Lincoln

[SMOKEY]

One Request , Ya gotta keep them front WING MIRRORS ,

PRICELESS,

FITZY.

[SP450andLE]

One Request , Ya gotta keep them front WING MIRRORS ,

PRICELESS,

FITZY.

AGREE

[niblik]

woot for the wombat!! crackin up at the name.. nice sez..

this'll be another cool little shetland to the stable.. i like ya 'odd' taste in vehicles and the differing from the norm. neat! be good to get this thing back onto the roads and "rumble" ( ) around..

so is it to be stock engined? what tyres / colour etc ya thinkin....?

[mudslut]

woot for the wombat!! crackin up at the name.. nice sez..

this'll be another cool little shetland to the stable.. i like ya 'odd' taste in vehicles and the differing from the norm. neat! be good to get this thing back onto the roads and "rumble" ( ) around..

so is it to be stock engined? what tyres / colour etc ya thinkin....?

Not so much rumble Nibs more of a RANG TANG TANG

[Dr_PC]

Have you got the Blue paint ordered, You'll probably want in about a week knowing the pace you work at.

[PuddleJumper]

Subscribed to this... LJ's are

[Nivapulledout]

cool shape to that zuk, man is there some rust though!!!!

will be keeping an eye on this. Good work

[UBZ]

no more backwards , slidey , skidy fun in the wet paddocks at night

Front half of the tub and floor pans don't look to bad that poo brown rust paint out in the cow shed should sort most of it out , but looks like you will need to get creative with trans tunnel.

Rear end looks savable
How is the chassis looking under there?
oh and more pictures of said PTO transfer case .........

Ill have to start a build thread know and claim all the bits I want before you use them

And for the LJ inclined , check out http://www.lj10.com

[DieselBoy]

:cry: no more backwards , slidey , skidy fun in the wet paddocks at night

Front half of the tub and floor pans don't look to bad that poo brown rust paint out in the cow shed should sort most of it out , but looks like you will need to get creative with trans tunnel.

Rear end looks savable
How is the chassis looking under there?
oh and more pictures of said PTO transfer case .........

Ill have to start a build thread know and claim all the bits I want before you use them

And for the LJ inclined , check out http://www.lj10.com

Haha, last Friday Night I dove the wheels of it for about 3/4 of an hour, lets just say its pretty bloody wet round here at the moment I was undertaking a scientific study to "test" the condition of the engine by making it do some hard work

I think what I will do is cut all the rust out and make one big poo brown patch to cover all the holes. I would say all that will be left is the trans tunnel and a bit of the fire wall after the rust is cut out

Progress pic's coming later tonight.........

[DieselBoy]

Been hitting it hard this week, lotsa rusted nuts and bolts, dirt, rust flakes and cuts from jaggy rusted edges, but progress is good

Don't quite know what I would do with out a rattle gun, angle grinder and BFH

Popped the front clip of and dumped it out side:


Dash all stripped out and de-loomed:


I thought a couple of pic's of the engine might be interesting. It sits high in the chassis, even more so as the motor doesn't have a sump like most people are used to seeing:






The Tub is free, finally got the last rusted body mount bolt out


Rolled the body off to the side for the first real look at the chassis. Looks GOOOOOOOOOOD, i'm stoked




Some awesome rust holes in the floor pans!!!


Good news is the trans tunnel and fire wall are good. With those two parts, the rest of it will just drop right into place



Just for UBZ, some PTO pic's:

The Front PTO CV joint



PTO on T.Case


PTO shaft and rear housing


And for Mudslut, the bloody shaft came straight out of the joint, no circlip or nothing. So much for our removal cross member mod


Water blast is up next

[UBZ]

PTO on T.Case

that is so
it just bolts straight to the top of a standard case

I think it needs to be opened for a more detailed inspection, to see what ratio the case is



and to see if it is copyable.......

[DieselBoy]

Check my thread on Auszookers, some dude posted a exploded diagram of the PTO

[DieselBoy]

[mudslut]

And for Mudslut, the bloody shaft came straight out of the joint, no circlip or nothing. So much for our removal cross member mod


Water blast is up next [/quote]

Lol i knew it must of came out some how,but i did like our idea must be the panelbeater aproach

[LOLYF]

I love how the cv bolts have the suzuki "S" on the heads, Thats farken cool!

Any idea what the PTO was used for originally?
